System board and components

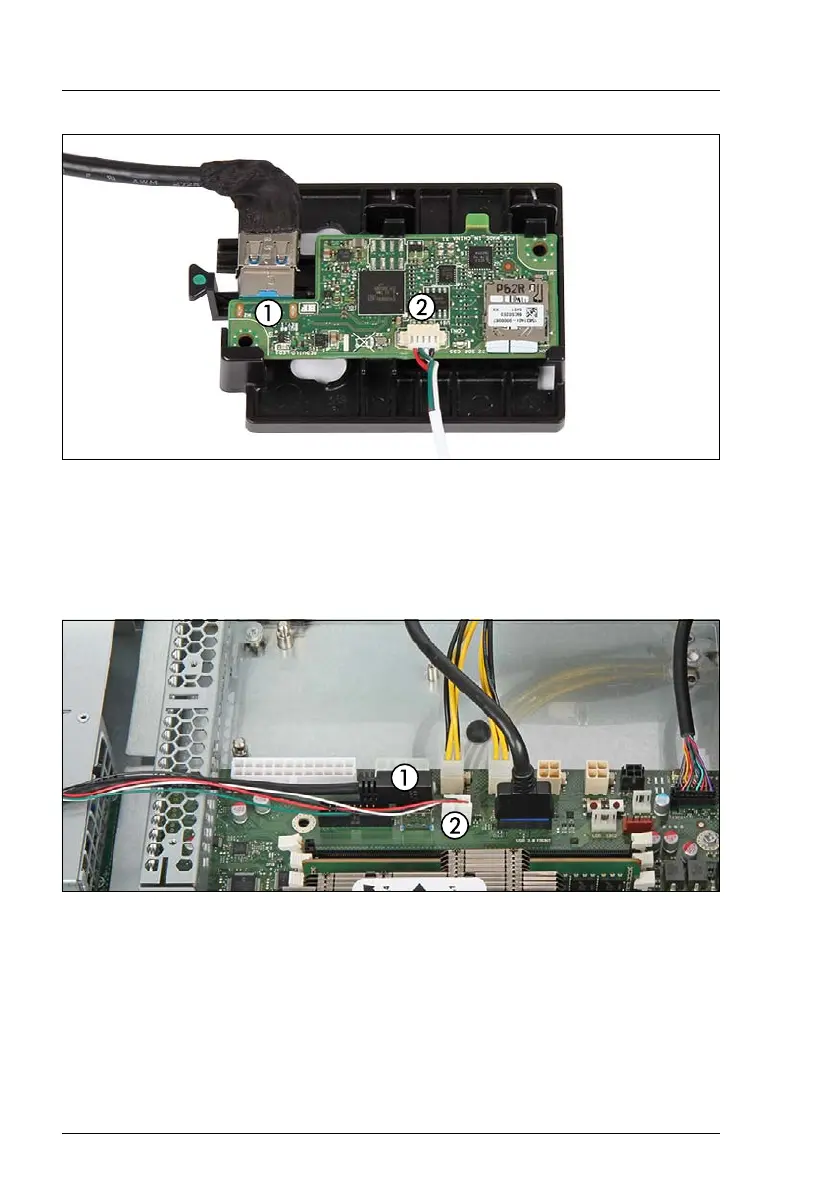

Figure 263: Connecting cables to the Dual microSD 64GB Enterprise
Ê Connect the cables to the Dual microSD 64GB Enterprise:
– (1) Dual microSD 64GB Enterprise USB cable.
– (2) Dual microSD 64GB Enterprise cable.
Figure 264: Connecting cables to the system board
Ê Connect the cables to the system board:
– (1) Dual microSD 64GB Enterprise USB cable to connector "USB 3.0
internal".
– (2) Dual microSD 64GB Enterprise cable C36 to connector "ROC".
