RX2520 M4
Upgrade and Maintenance Manual 263

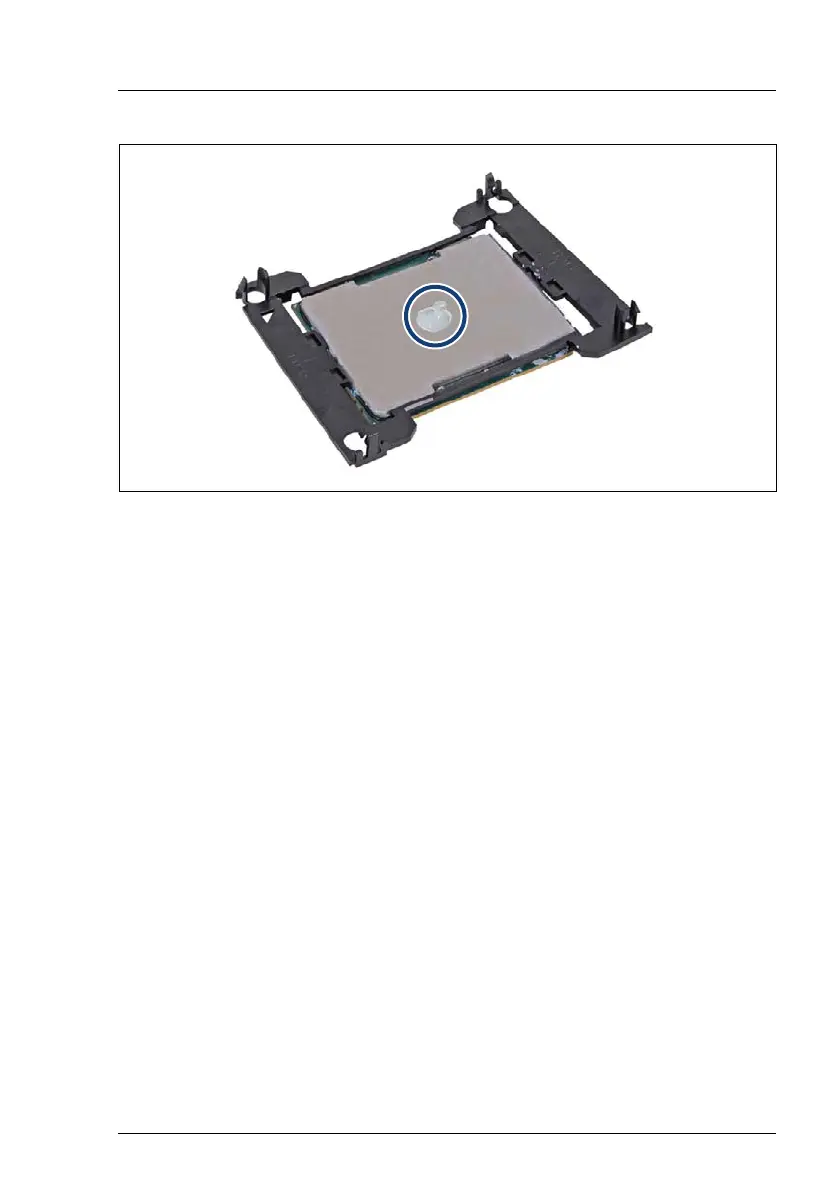

Figure 161: Applying the thermal paste
Ê Apply a small streak of thermal paste (see description above) to the center
of the CPU surface as shown.
V CAUTION!
Do not mix different types of thermal paste.
11.3.5 Installing the CPU and heat sink
Ê Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
Ê If applicable, remove the protective cap from the bottom side of the new
CPU.
Ê Install the CPU and heat sink, see section "Installing the CPU and heat sink"
on page 253.
11.3.6 Concluding steps
Ê "Installing the air duct" on page 62
Ê "Reassembling" on page 55
Ê "Connecting the power cord" on page 59
