RX2520 M4 Upgrade and Maintenance Manual 319
Front panel
13.2.1.7 Installing the front panel cage

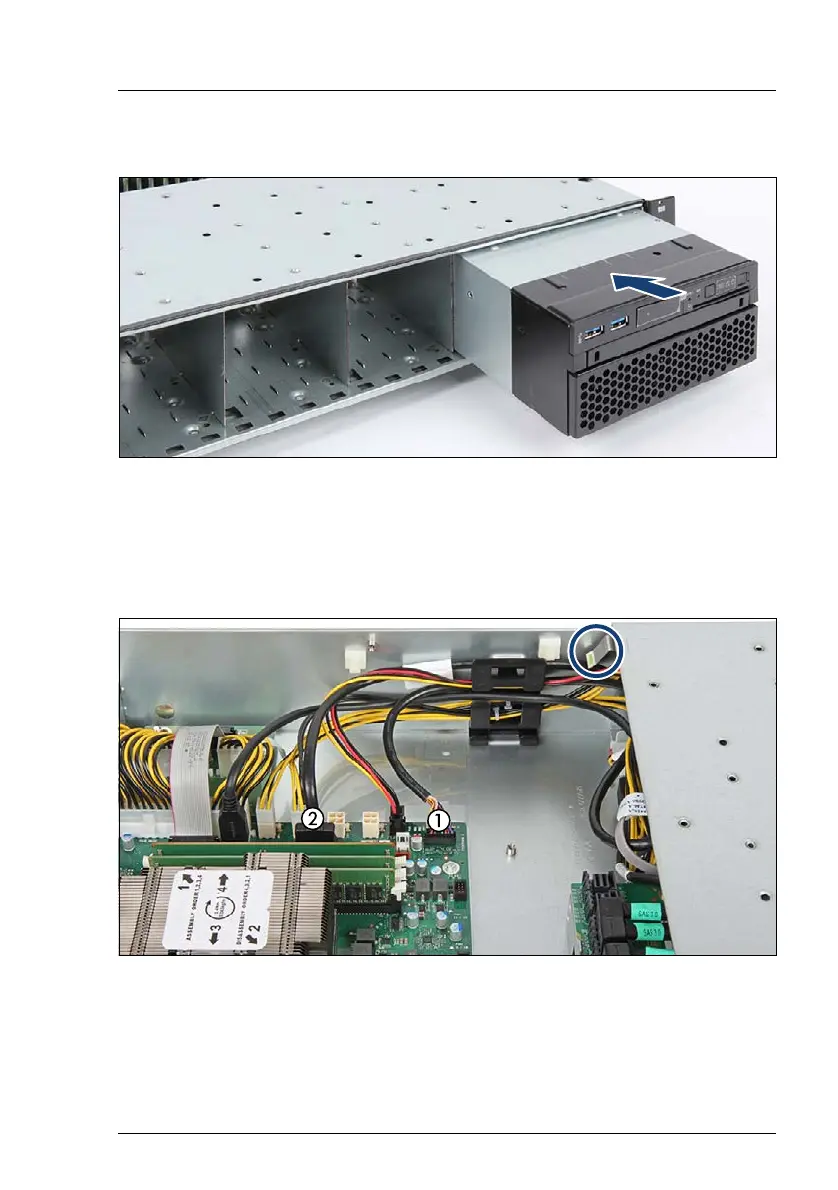

Figure 219: Installing the front panel cage
Ê Run the cables through the opening.
Ê Insert the front panel cage into the chassis (see arrow).
Ê Insert the ID card, see figure 272 on page 388.
Figure 220: Connecting the front panel cables
Ê Connect the front panel cables to the system board:
– (1) Front panel cable to connector "FRONTPANEL1".
– (2) Front USB cable to connector "USB3.0 FRONT".
