156 Upgrade and Maintenance Manual
RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)
7.3.14 Upgrading the 4x 2.5-inch PCIe SSD backplane
7.3.14.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 48
Ê "Disconnecting the power cord" on page 49
Ê "Getting access to the component" on page 50
Ê "Removing the air duct" on page 61
Ê "Removing the fan holder" on page 63
7.3.14.2 Installing a 4x 2.5-inch PCIe SSD backplane

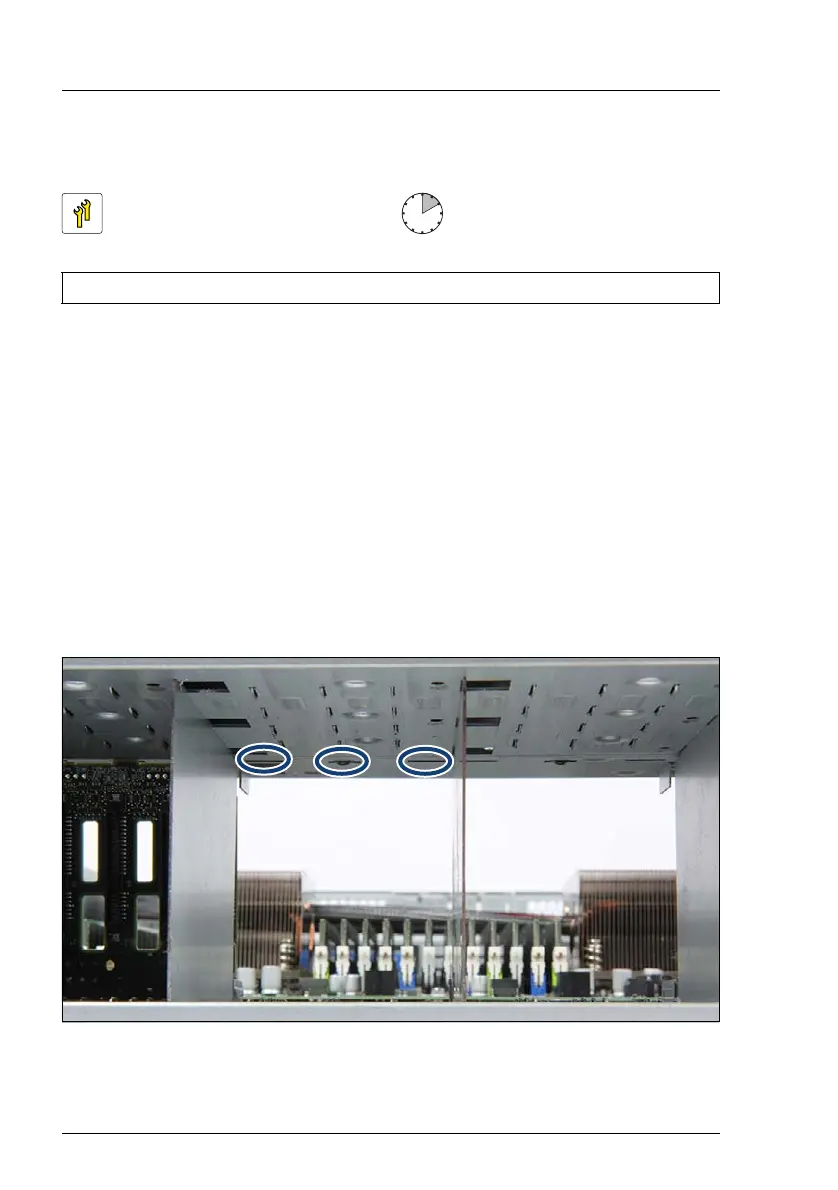

Figure 62: Recesses at the top for the 2.5-inch PCIe SSD backplane
Ê Regard the three recesses at the top.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
To Next Page
