366 Upgrade and Maintenance Manual
RX2520 M4
System board and components
15.5.1.2 Installing the M.2 SSD

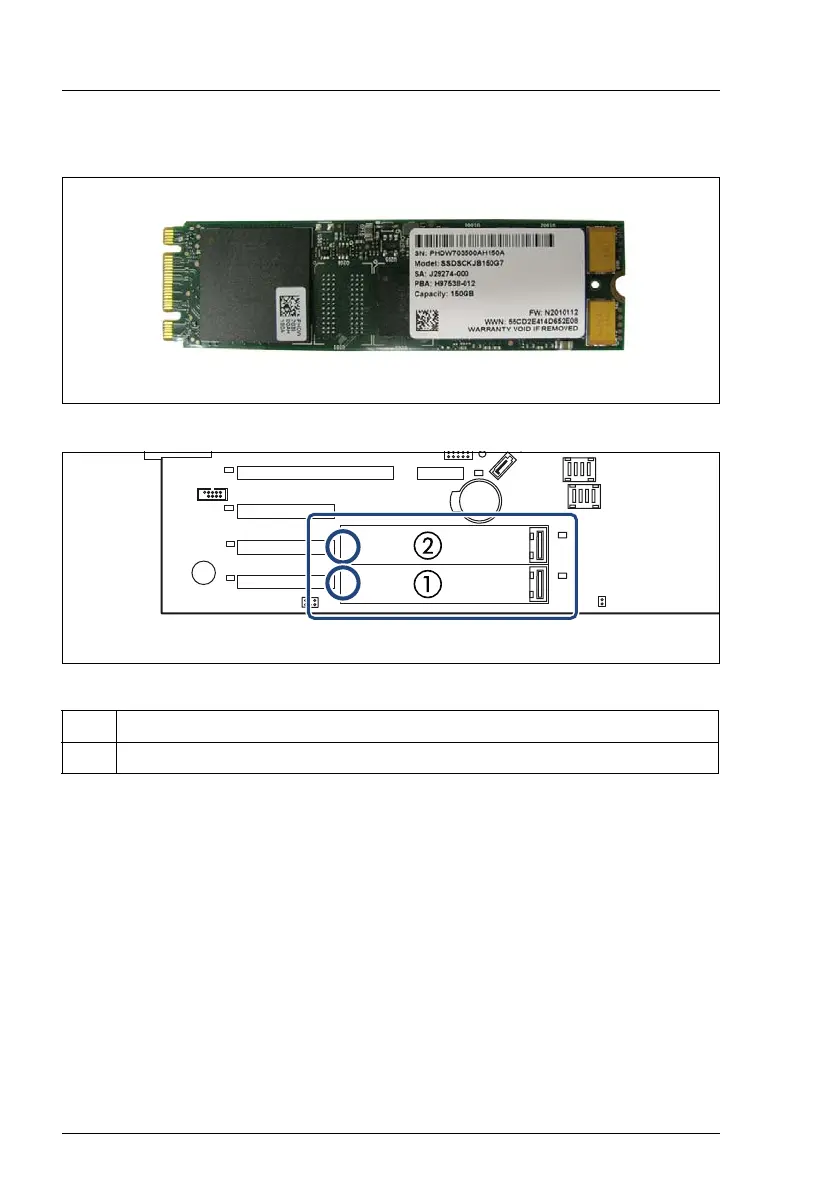

Figure 256: Example M.2 SSD
Figure 257: Slots and bolts for M.2 SSDs
V CAUTION!
The M.2 slot 1 must be equipped first. An M.2 SSD in M.2 slot 2 is not
recognized, if M.2 slot 1 is free.
I Each M.2 SSD needs one bolt for fastening. There are more bolts
available to support different lengths of M.2 SSDs.
Ê If no M.2 SSD has been installed before:
Ê Remove the screw with the hexagon stand-off (see circles in figure 257)
depending on the M.2 slot.
Ê Remove the screw from the hexagon stand-off.
1 M.2 slot 1
2 M.2 slot 2
SERIAL
SA
JP2
JP1
SSD2
M.2
M.2
SSD1
JP3
LAN 1
USB 3.0
Slot 2 (CPU 1)
Slot 1 (CPU 1)
Slot 4 (CPU 1) - slot riser card
Slot 3 (CPU 1)
SATA
4-7
SATA
0-3
Buzzer
Battery
