RX2520 M4 Upgrade and Maintenance Manual 229
Expansion cards and backup units
9.5.2.3 Disconnecting the FBU cable from the FBU

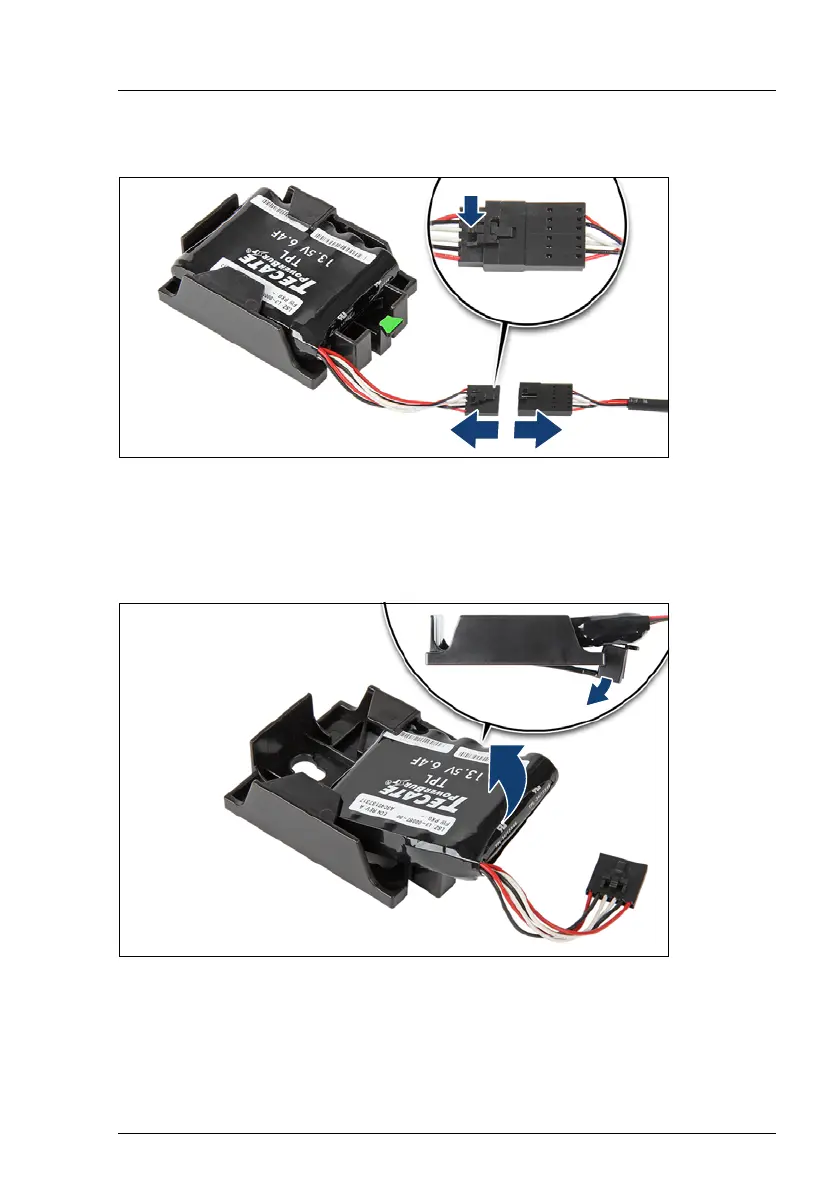

Figure 135: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.5.2.4 Removing the FBU02 (EP4x0i) from the holder
Figure 136: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
