RX2520 M4
Upgrade and Maintenance Manual 55
Basic hardware procedures
4.5 Reassembling
V CAUTION!
●
Before attaching the covers, make sure no unnecessary parts or tools
are left inside the server.
●
The top cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
●
For more safety information, see chapter "Important information" on
page 33.
4.5.1 Installing the top cover

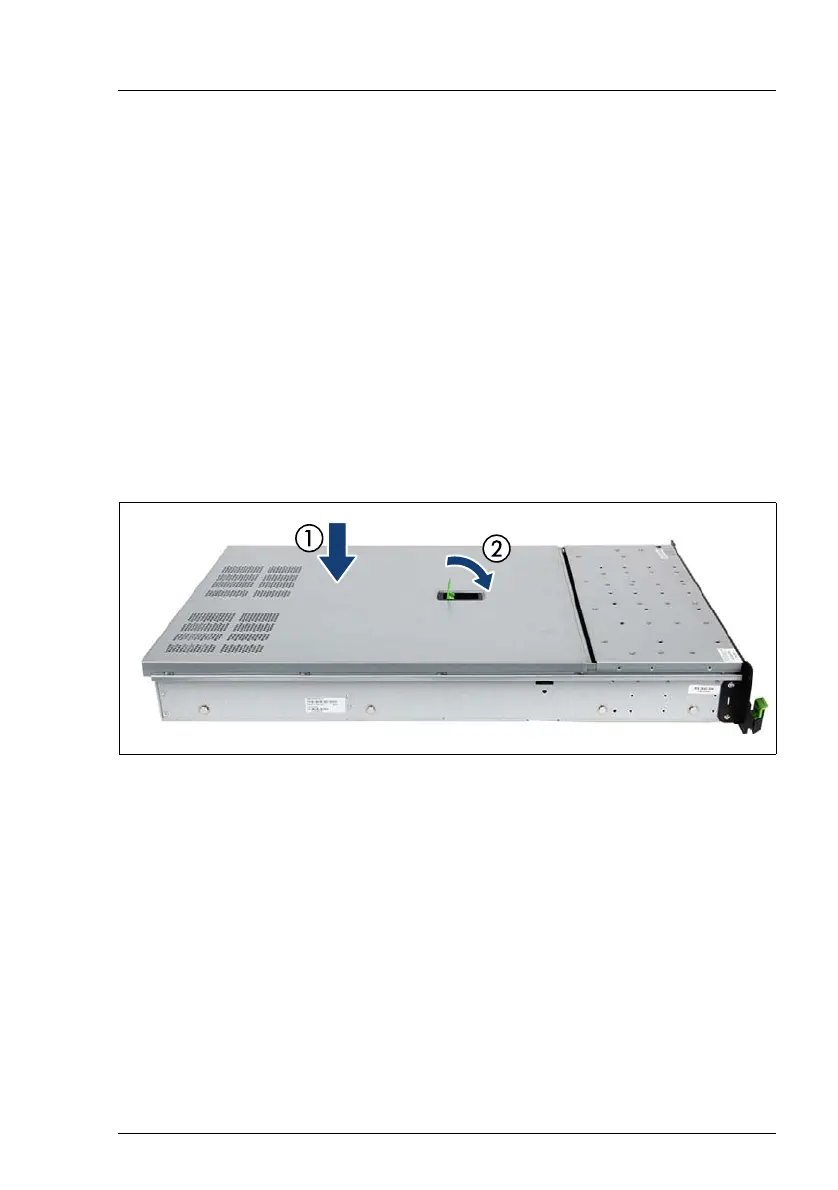

Figure 6: Installing the top cover
Ê Open the locking lever on the top cover.
Ê Fit the top cover on the chassis, aligning it according to the edge guide
marking on the upper server surface.
Ê Lower the top cover onto the chassis (1).
Ê Close the locking lever on the top cover. This will slide the top cover shut
engaging the locking mechanism (2).
