228 Upgrade and Maintenance Manual
RX2520 M4
Expansion cards and backup units
9.5.2.2 Removing the FBU with the holder

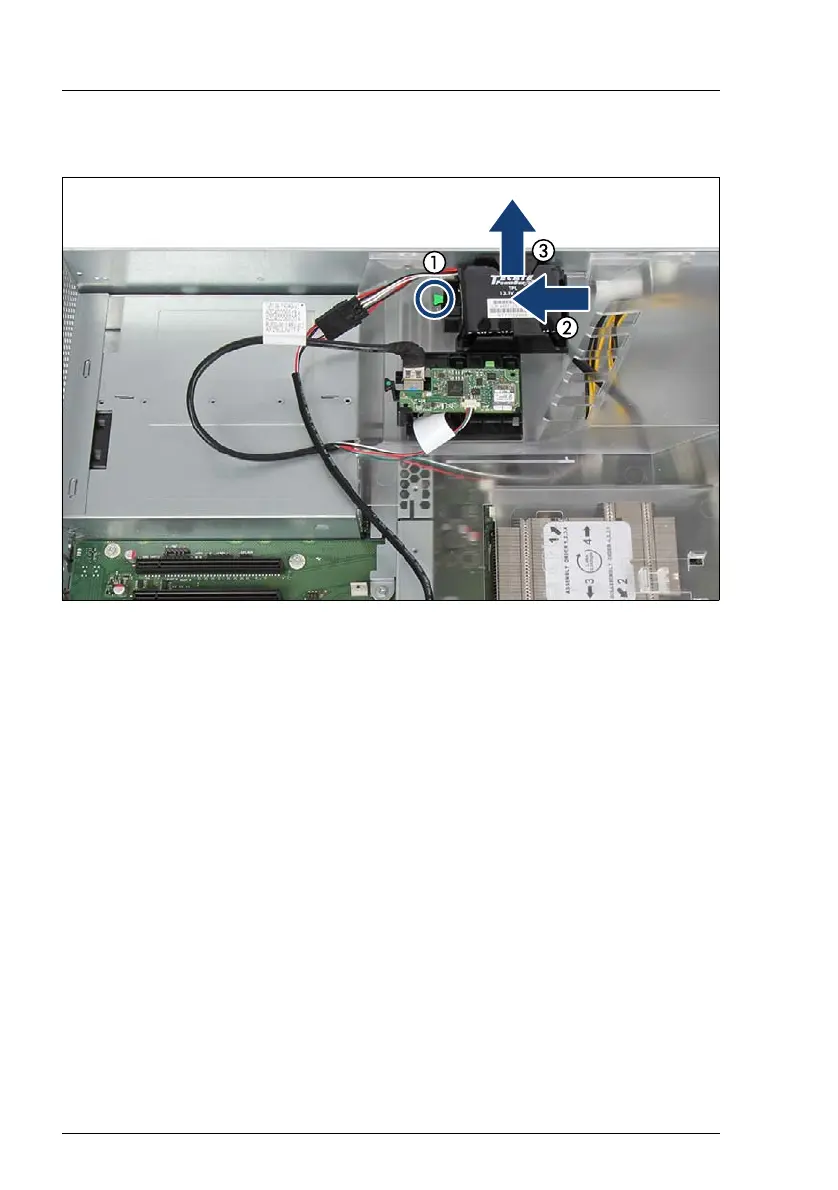

Figure 134: Removing the holder from the air duct
Ê Lift up the green locking handle on the holder (1) while sliding the holder to
the left as far as it will go (2).
I After that, the shoulder screw caps on the air duct will rest in the wide
ends of the keyhole slots on the holder.
Ê Lift the holder from the air duct (3).
