RX2520 M4
Upgrade and Maintenance Manual
327
Fron
t pan
el
13.3.1.4
Installing cables to the front panel module

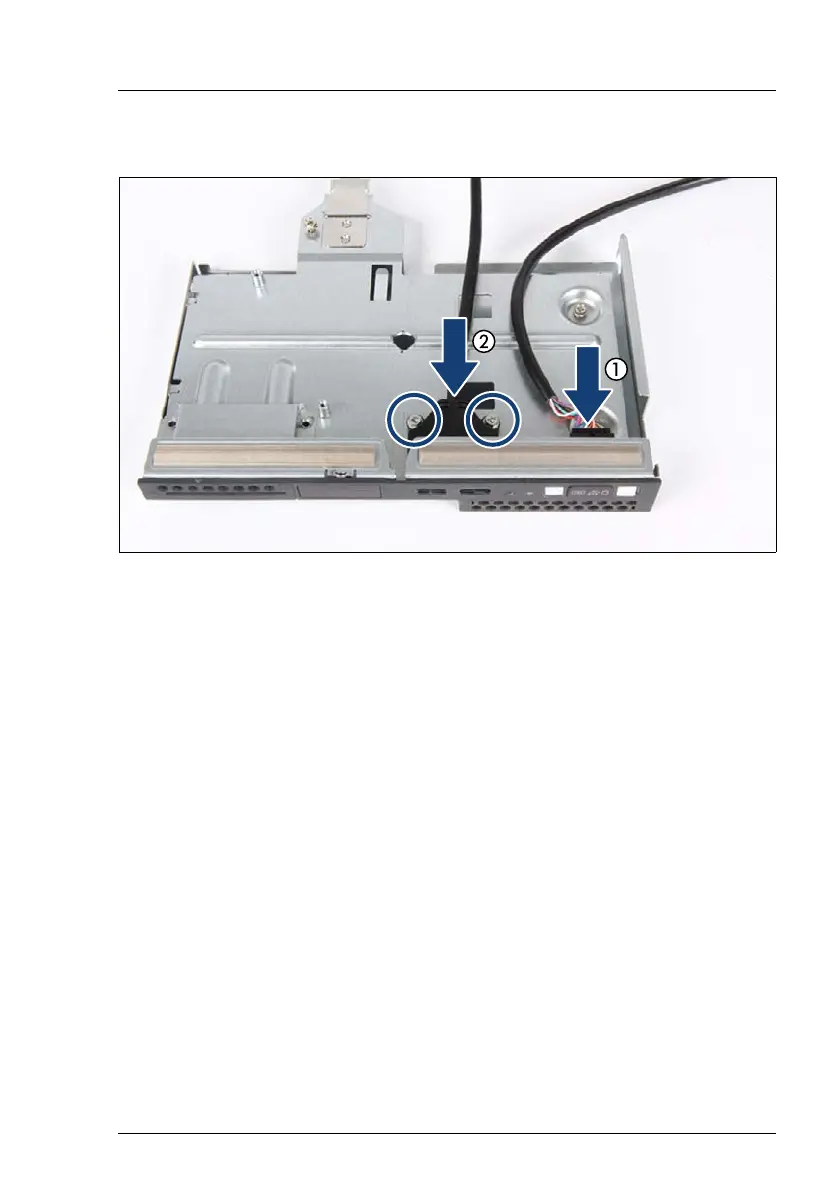

Figure 226: I
nstalling cables to the front panel module
Ê
Connect the front panel cable (1).
Ê
Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
326
