Hard disk drive (HDD) and solid state drive (SSD)
7.4.2 Configuration with up to eight HDD modules

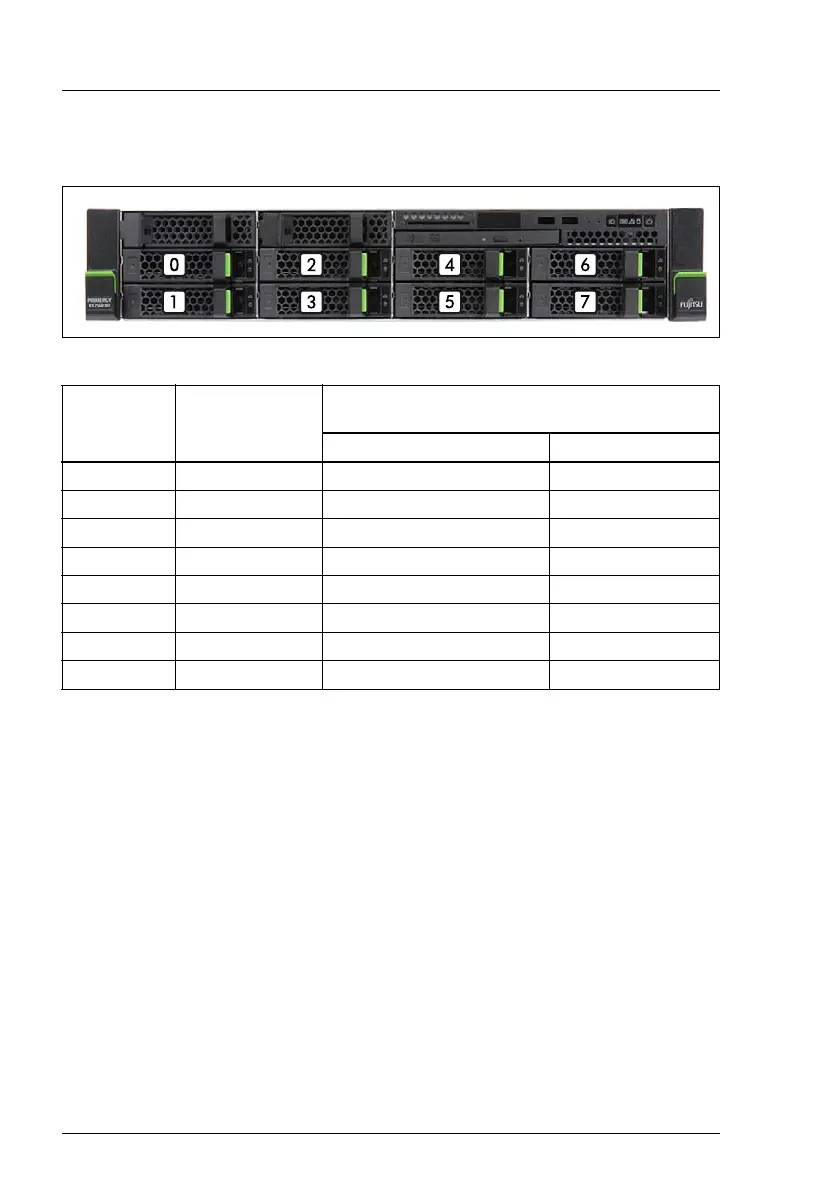

Figure 66: Configuration with up to eight 3.5-inch HDDs
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller two SAS controllers
[0] 0 Vendor Product (0) Vendor Product (0:0)
[1] 1 Vendor Product (1) Vendor Product (0:1)
[2] 2 Vendor Product (2) Vendor Product (0:2)
[3] 3 Vendor Product (3) Vendor Product (0:3)
[4] 4 Vendor Product (4) Vendor Product (1:0)
[5] 5 Vendor Product (5) Vendor Product (1:1)
[6] 6 Vendor Product (6) Vendor Product (1:2)
[7] 7 Vendor Product (7) Vendor Product (1:3)
