RX2520 M4
Upgrade and Maintenance Manual 181
Hard disk drive (HDD) and solid state drive (SSD)
7.4.9.5 Installing the SAS expander board holder

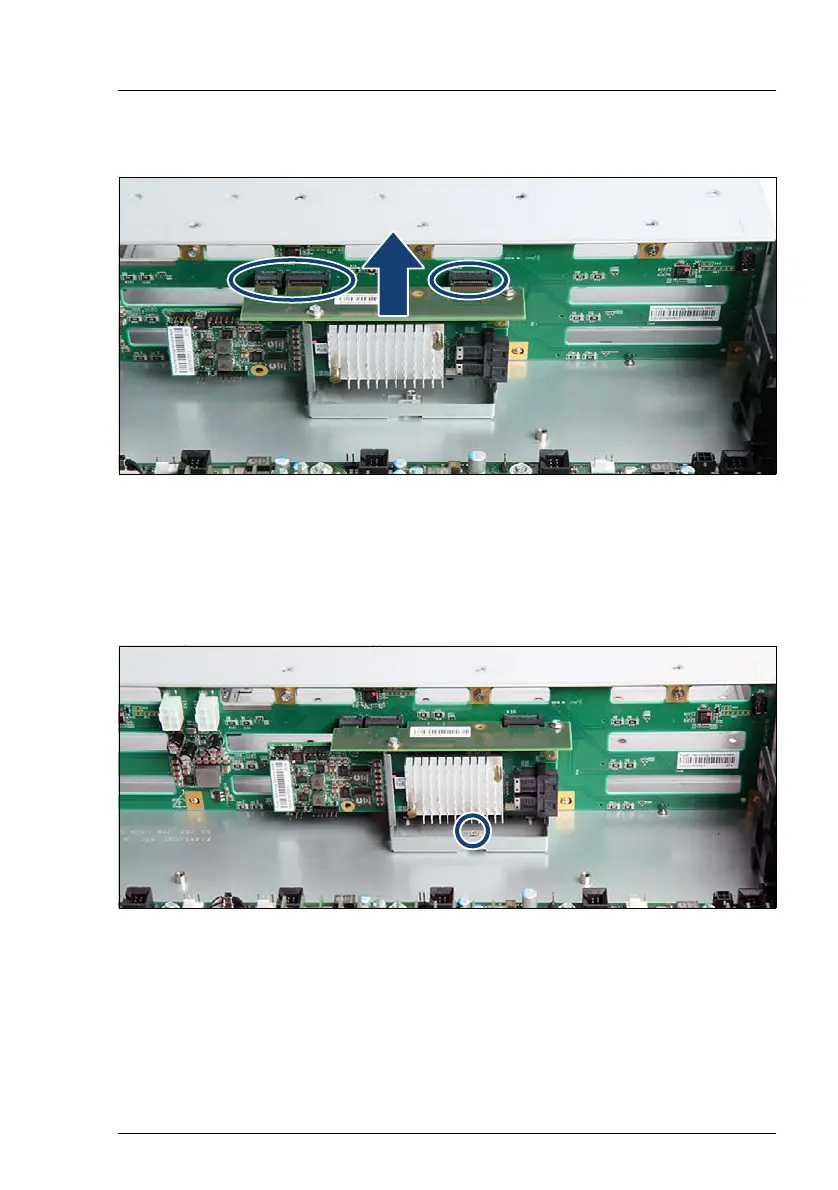

Figure 88: Installing the assembled SAS expander board holder (A)
Ê Insert the connector card into the three connectors of the backplane (see
circles).
I Lift up the SAS expander board holder and take care of the stand-off
in the chassis.
Figure 89: Installing the SAS expander board holder (B)
Ê Fasten the SAS expander board holder with one screw (see circle).
