RX2520 M4
Upgrade and Maintenance Manual 159
Hard disk drive (HDD) and solid state drive (SSD)
7.4 3.5-inch HDD/SSD configurations
– The HDD bays can be equipped with 3.5-inch HDD modules or 2.5-inch
HDD/SSD modules, see section "3.5-inch HDD and 3.5-inch installation
frame" on page 125.
7.4.1 Configuration with up to four HDD modules

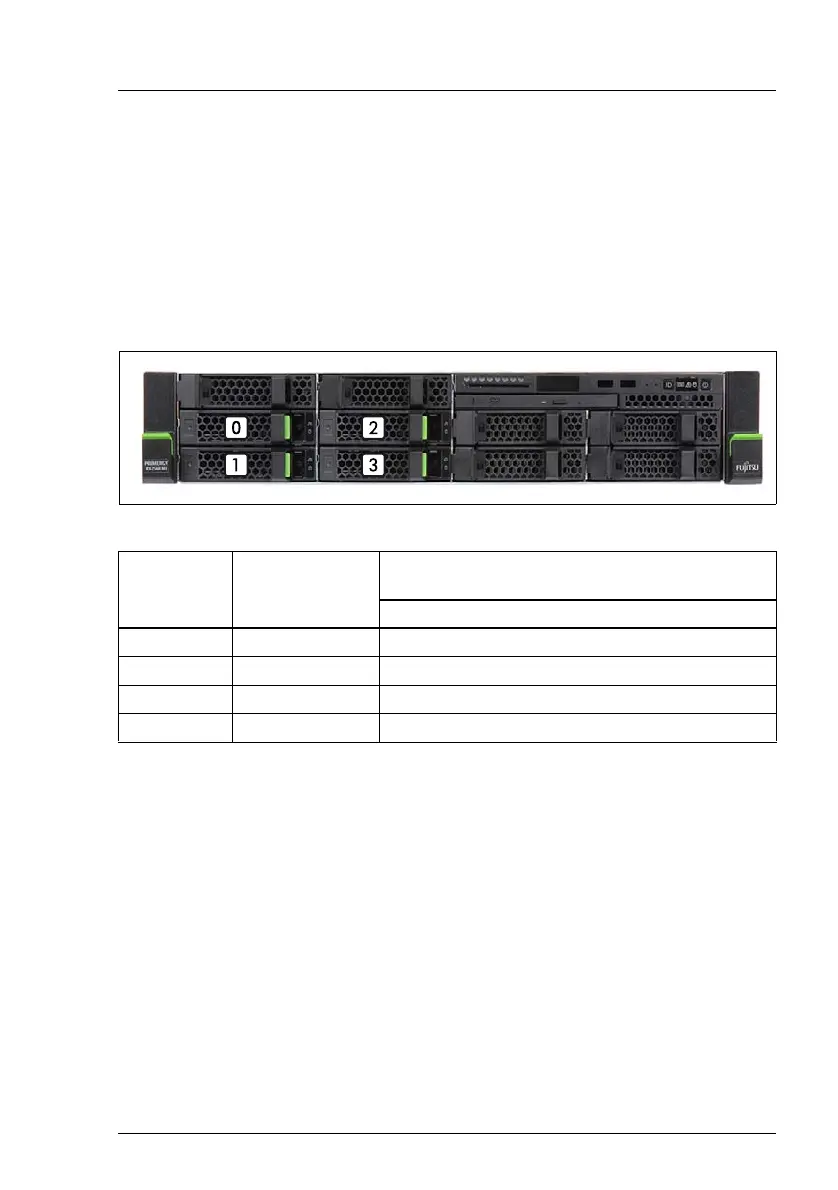

Figure 65: Configuration with up to four 3.5-inch HDDs
Position
Logical drive
number
ServerView RAID Manager display name
(Enclosure number: Port number)
one SAS controller
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
