RX2520 M4
Upgrade and Maintenance Manual
315
Fron
t pan
el

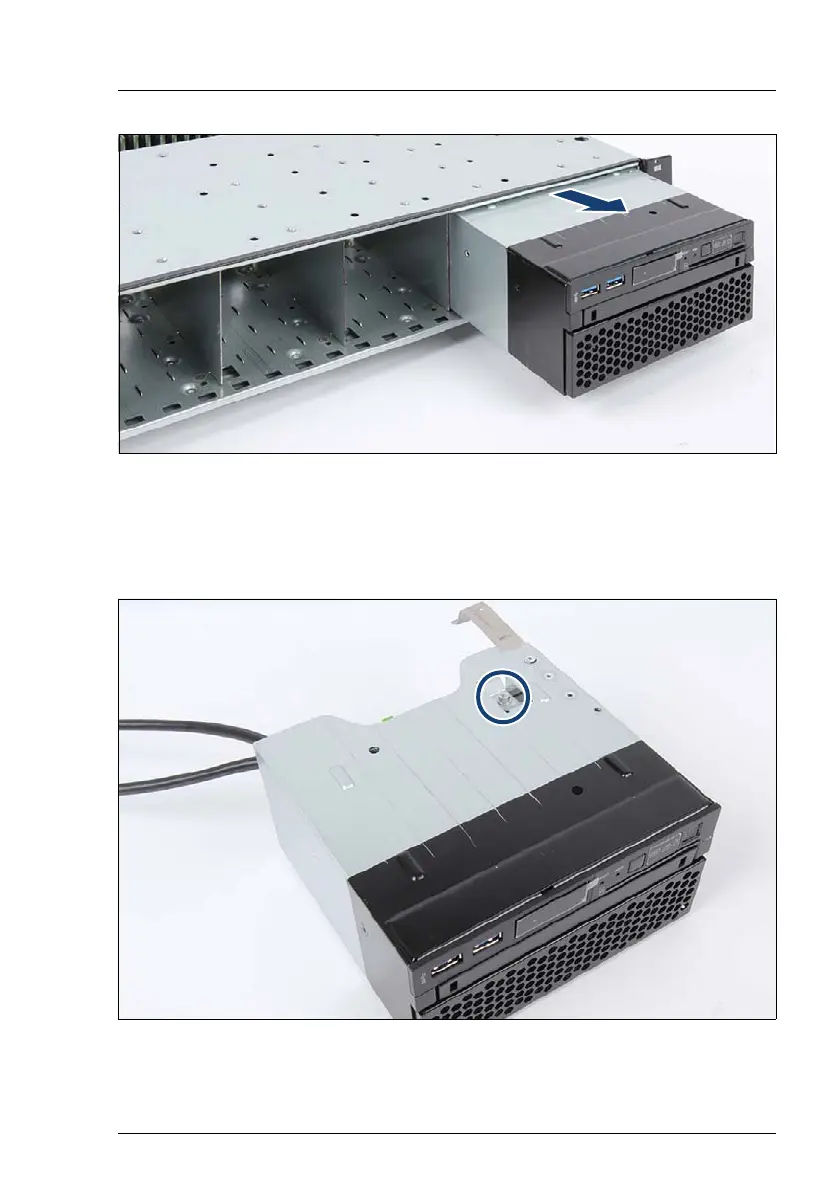

Figure 212: Removing the front panel
cage (B)
Ê
Remove the front panel cage out of it
s bay
.
13.2.1.3
Removing the fro
nt p
anel module
Figure 213: Removing the front panel
module
Ê
Remove the screw (see circle).
314
316
