16.3 Onboard settings

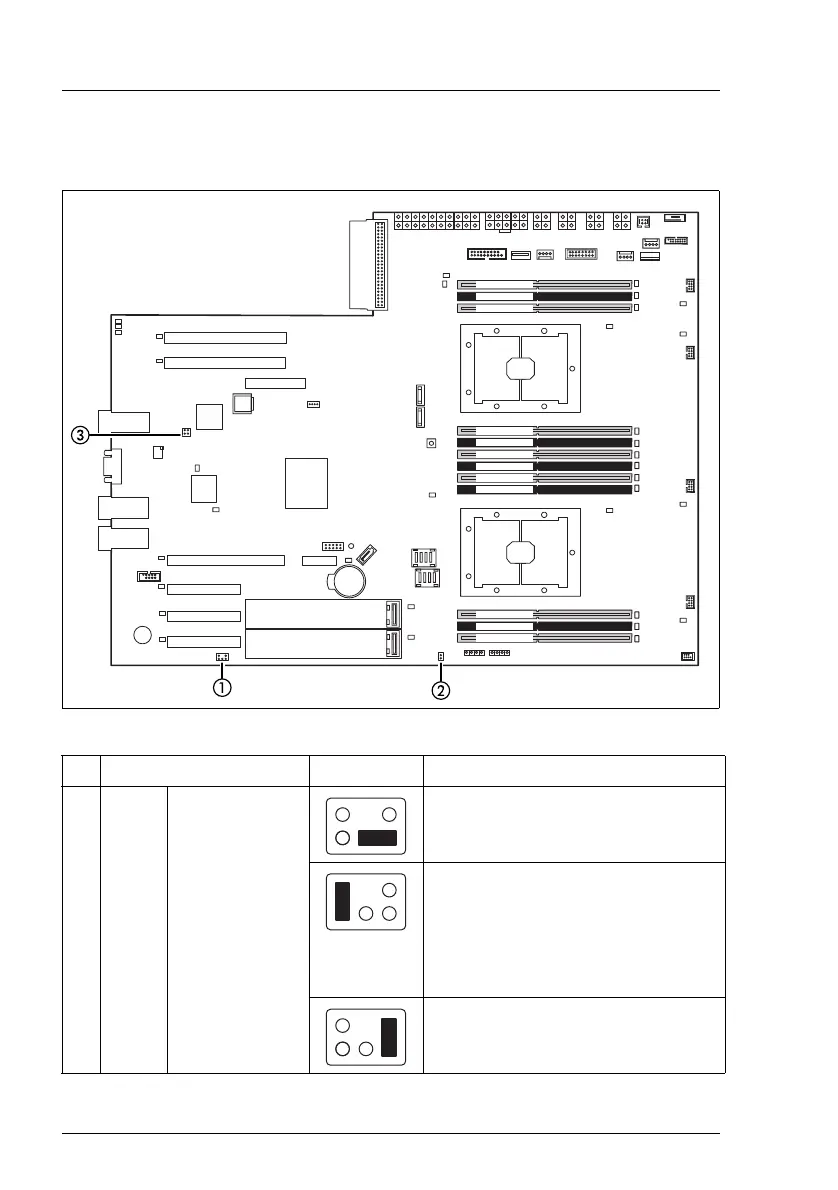

Figure 286: Onboard settings on system board D3386
Setting Status Description
1
JP1
JP2
Password and
Recovery BIOS
Default (place to keep the jumper)
Password Clear enabled
This jumper setting will
permanently delete the current
BIOS password and apply default
BIOS settings.
Recovery BIOS enabled
CSS
USB3.0
Front
SERIAL
ODD
OOB
Front
Panel 1
SATA ODD
USB2.0
Internal
PSU1
JP2
JP1
Slot OCP module
Micro
SD
SSD2
M.2
M.2
SSD1
TPM
HDD LED 2
iRMC
S5
LAN
Management
VGA
LAN 1
LAN 1/M
USB 3.0
PSU 2
CTRL
FAN 1/2 FAN 5/6
FAN 9/10 FAN 11/12
CPU 2
CPU 1
VPP CPU1
VPP CPU2
JP3
LAN 1
LAN 2 /
USB 3.0
Slot 9 (CPU 2)
Slot 8 (CPU2)
Slot 2 (CPU 1)
Slot 1 (CPU 1)
Slot 4 (CPU 1)
Slot 3 (CPU 1)
JP7 JP8
Intrusion
USB3.0
Internal
ROC
LCD
PSU2 EXTPSU2 MAIN
SATA
4-7
SATA
0-3
Buzzer
iRMC
S5
Front Panel
2
PWR1 PWR2 PWR3 PWR4
Battery
CPU 2 DIMM 1K
CPU 2 DIMM 1L
CPU 2 DIMM 1M
CPU 1 DIMM 1C
CPU 1 DIMM 1B
CPU 1 DIMM 1A
CPU 1 DIMM 1D
CPU 1 DIMM 1E
CPU 1 DIMM 1F
CPU 2 DIMM 1J
CPU 2 DIMM 1H
CPU 2 DIMM 1G
VROC
HDD LED 1
