RX2520 M4
Upgrade and Maintenance Manual 143
Hard disk drive (HDD) and solid state drive (SSD)
7.3.8.4 Connecting a 2.5-inch HDD backplane
I For the cable plan, see chapter "Appendix B" on page 411.

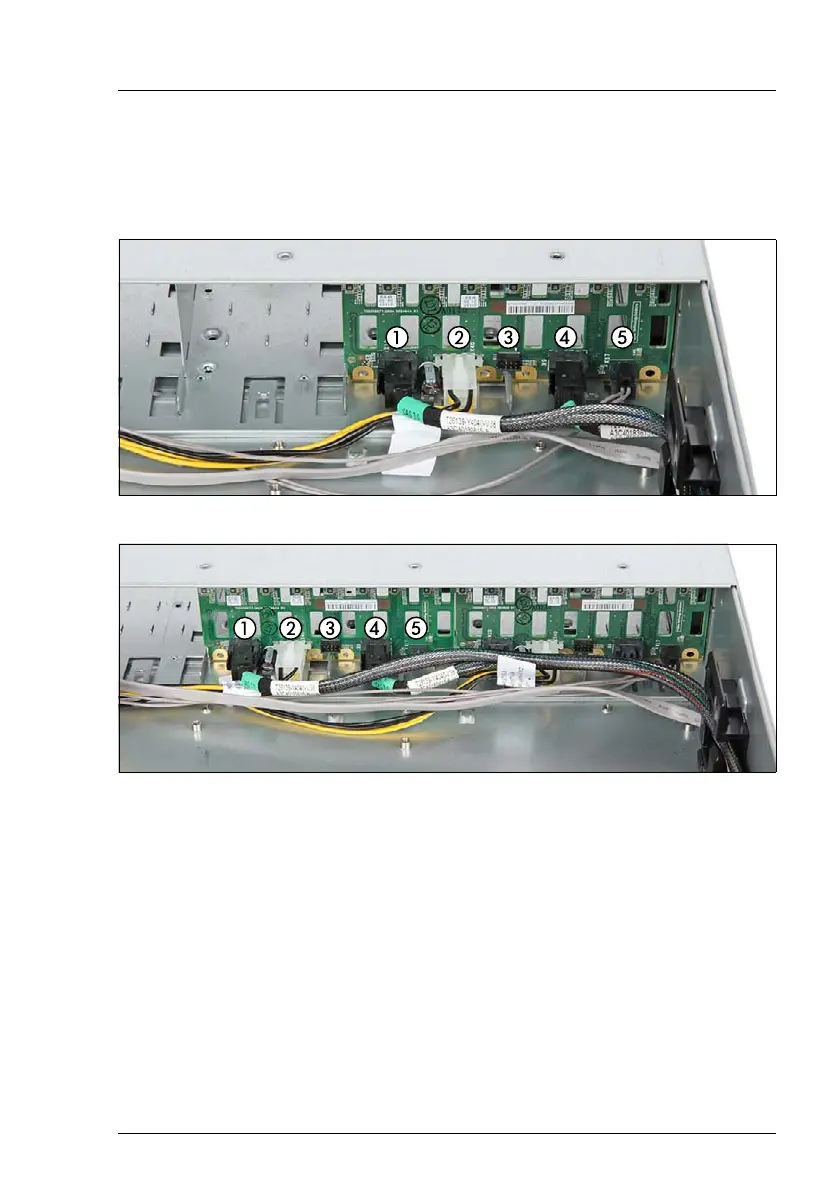

Figure 55: Connecting cables to the backplane (example 8x 2.5-inch HDDs)
Figure 56: Connecting cables to the backplane (example 16x 2.5-inch HDDs)
Ê Connect the cables to the backplane:
– (1) Corresponding SAS cable to connector "X10"
– (2) Power cable C11 to connector "X40"
– (3) If applicable, OOB cable C7 to connector "X11"
– (4) Corresponding SAS cable to connector "X9"
– (5) ODD power cable (first backplane) and if applicable, SAS expander
board power cable (second backplane) to connector "X17"
