Fujitsu PRIMERGY RX2520 M4

190 Upgrade and Maintenance Manual RX2520 M4
Fans
8.1 Basic information
The server is equipped with two or three fan modules. Each module contains
two fans.
8.1.1 Numbering of the fan modules

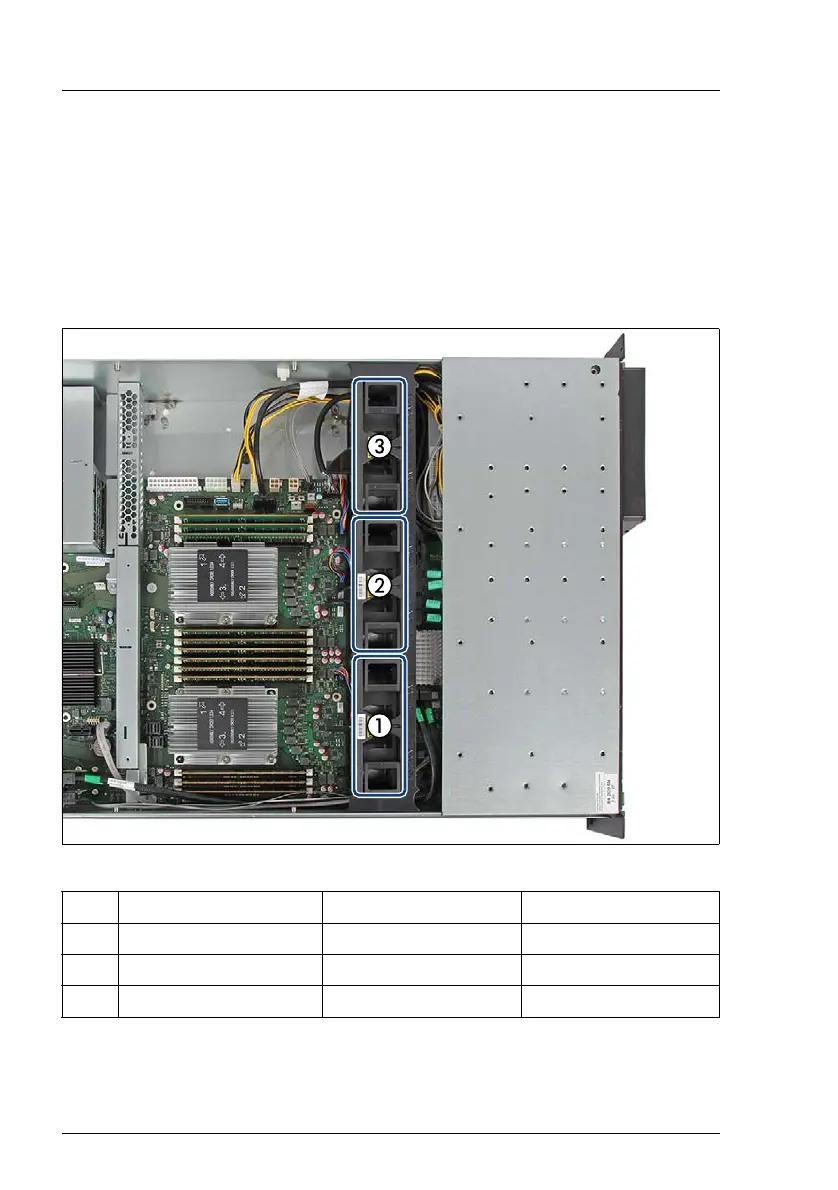

Figure 99: Numbering of the fan modules
Pos. Module name Fan Fan connector
1 Fan module 1 Fans 1/2 FAN 5/6
2 Fan module 2 Fans 3/4 FAN 9/10
3 Fan module 3 Fans 5/6 FAN 11/12
Table 3: Fan modules and connectors
