142 Upgrade and Maintenance Manual RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)
7.3.8.3 Installing a 2.5-inch HDD backplane

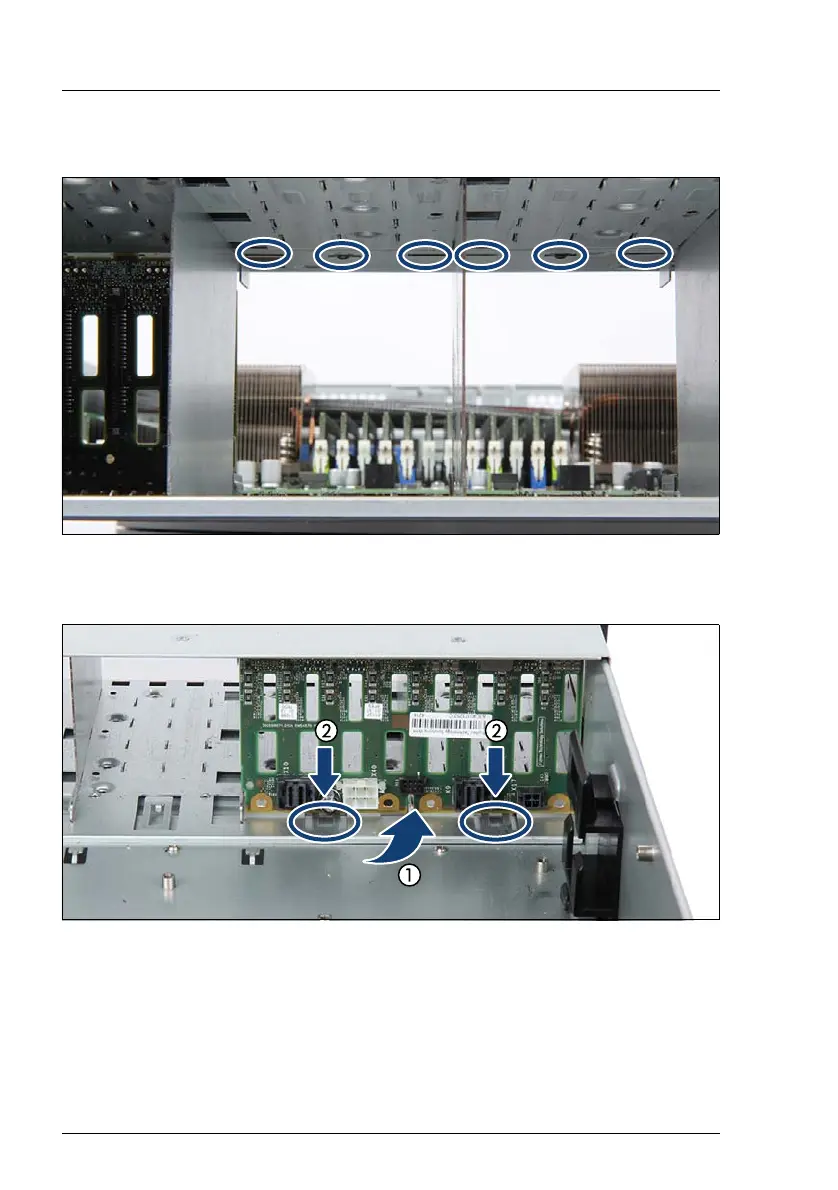

Figure 53: Recesses at the top for the 2.5-inch HDD backplane
Ê Regard the six recesses at the top.
Figure 54: Installing the 8x 2.5-inch HDD backplane
Ê At a slight angle insert the backplane in the six recesses (see figure 53 on
page 142) at the top.
Ê Fold back the backplane on the bottom (1) until it rests in the two hooks (2).
