21RX2520 M4

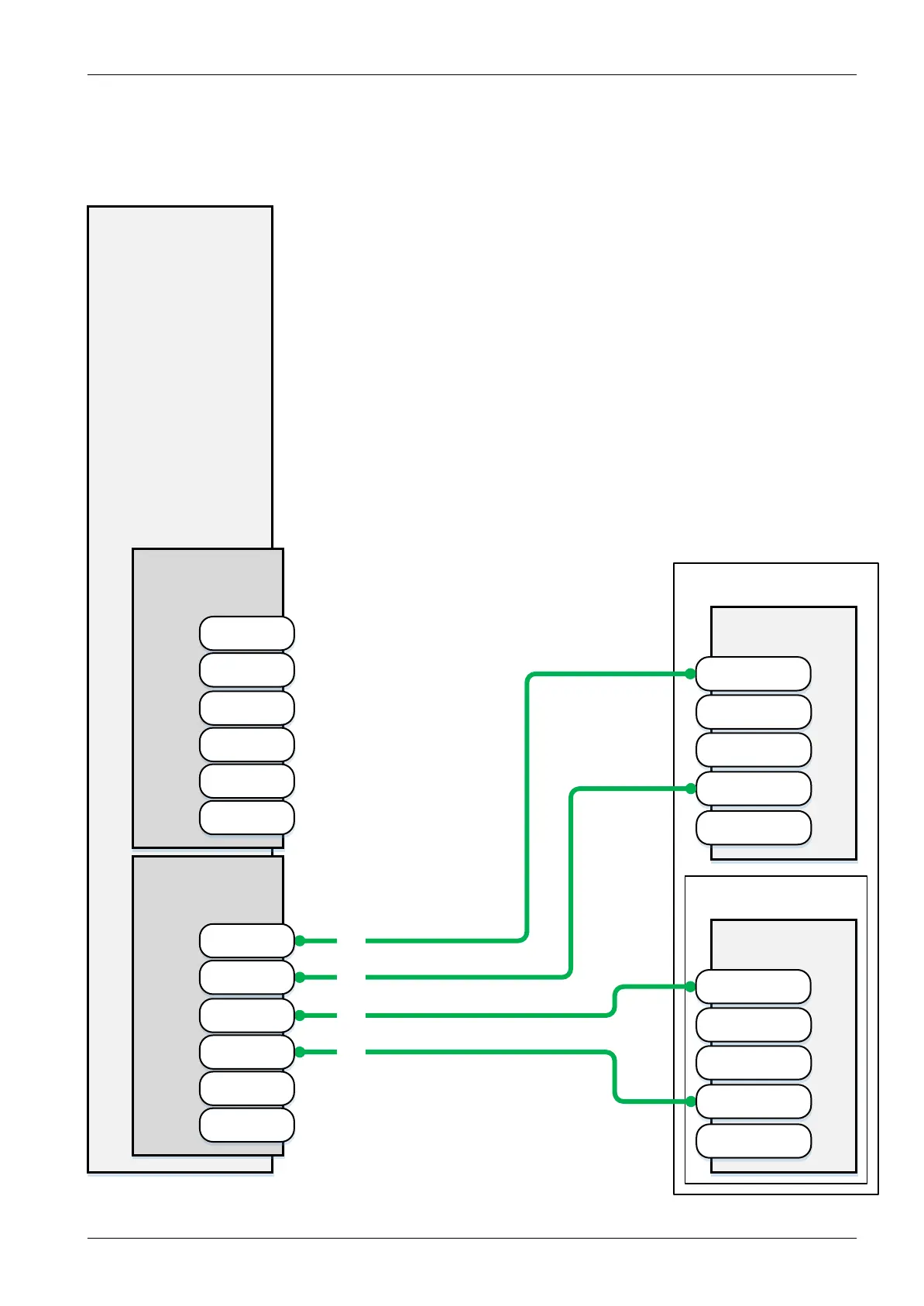

HDD Cabling 8/16x2.5" EP5x0 w/o Exp
Cable plan
16x3.5"
8x2.5"
C23
C22
X11 (OOB)
X40 (Bpl PWR)
8x2.5"
X17 (ODD PWR)
X9 (Data)
X10 (Data)
X11 (OOB)
X40 (Bpl PWR)
8x2.5"
X17 (ODD PWR)
X9 (Data)
X10 (Data)
C24
C20
EP5x0
slot2 (boot)
C1
C0
C3
C2
HDD LED
SCAP
EP5x0
slot1
C1
C0
C3
C2
HDD LED
SCAP
Systemboard
D3386
