RX2520 M4 Upgrade and Maintenance Manual 179
Hard disk drive (HDD) and solid state drive (SSD)

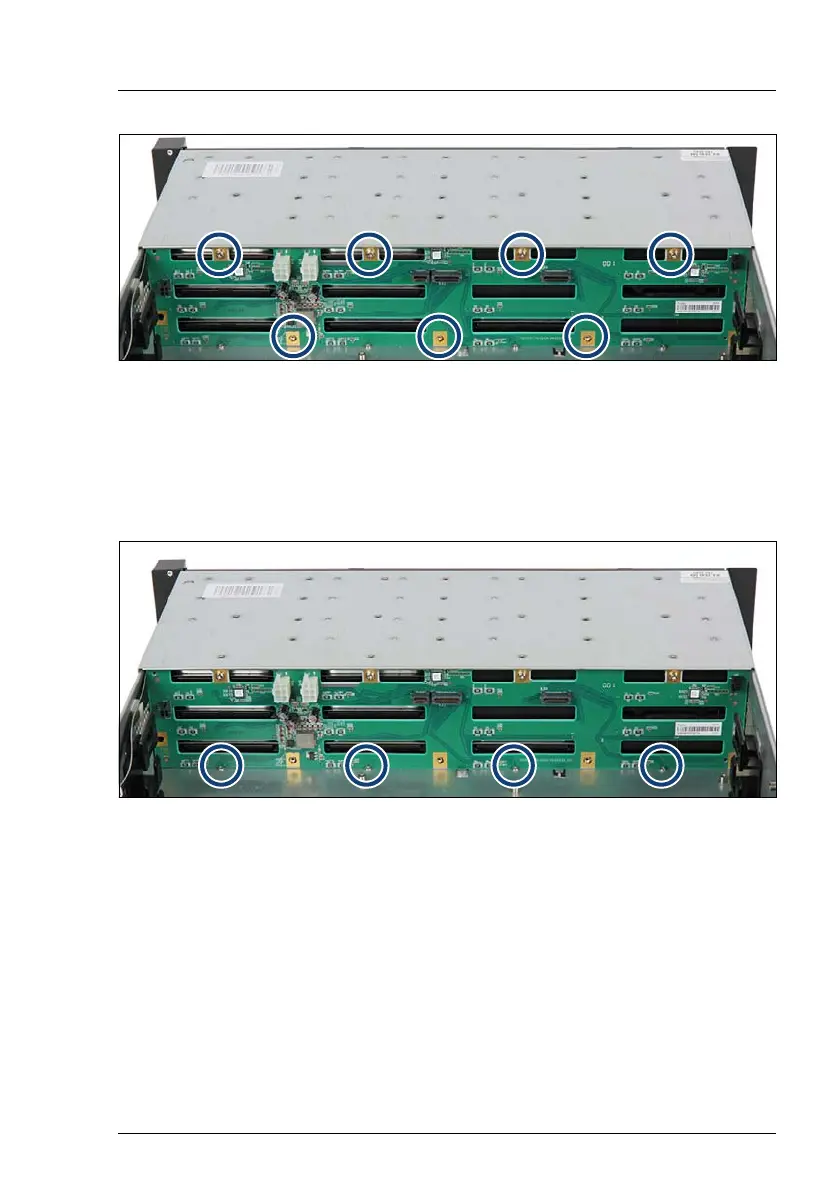

Figure 84: Removing the 12x 3.5-inch HDD backplane
Ê Remove the seven screws (see circles).
Ê Take out the backplane at a slight angle (45°).
7.4.9.4 Installing the new 12x 3.5-inch HDD backplane
Figure 85: Installing the 12x 3.5-inch HDD backplane (A)
Ê Position the backplane behind the four stampings into the chassis (see
circles).
