Accessible drives

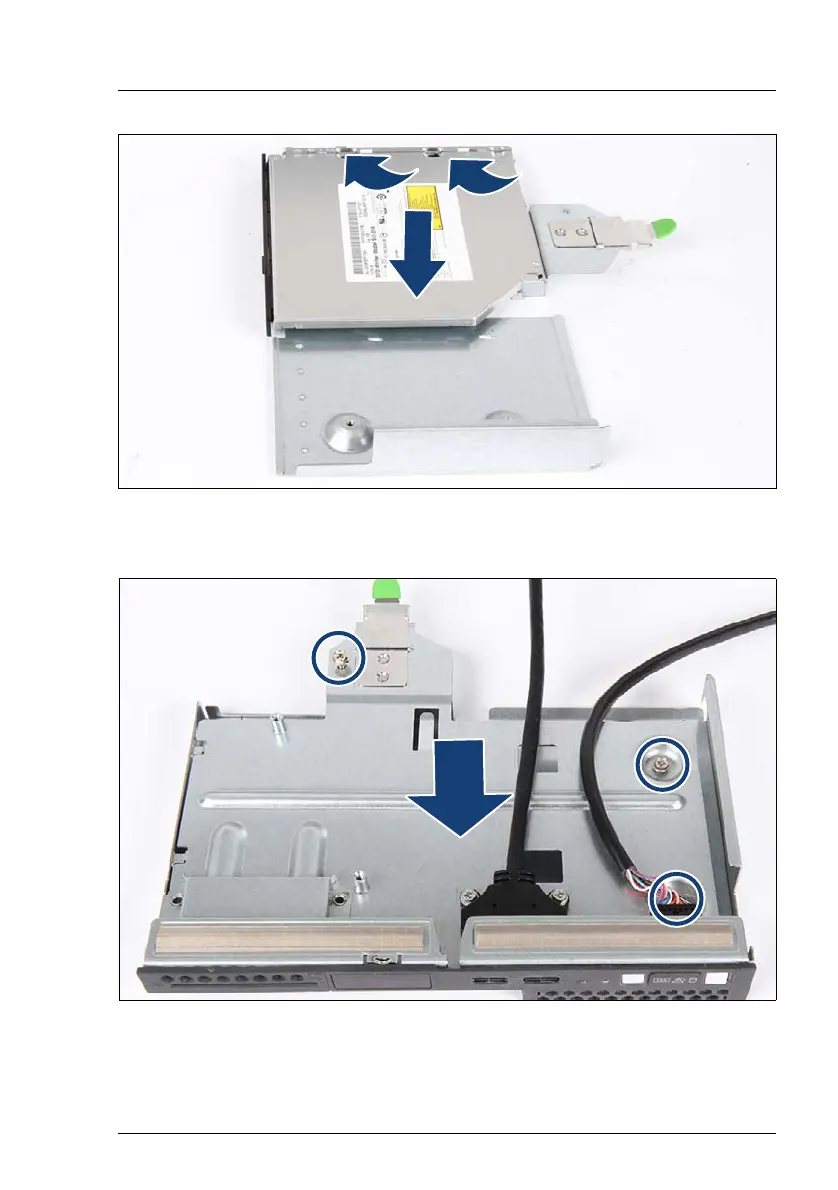

Figure 180: Installing the ODD in the front panel module
Ê Insert the ODD.
Figure 181: Installing the ODD
Ê Install the cover plate of the front panel module.
Ê Fasten the three screws.
