Accessible drives

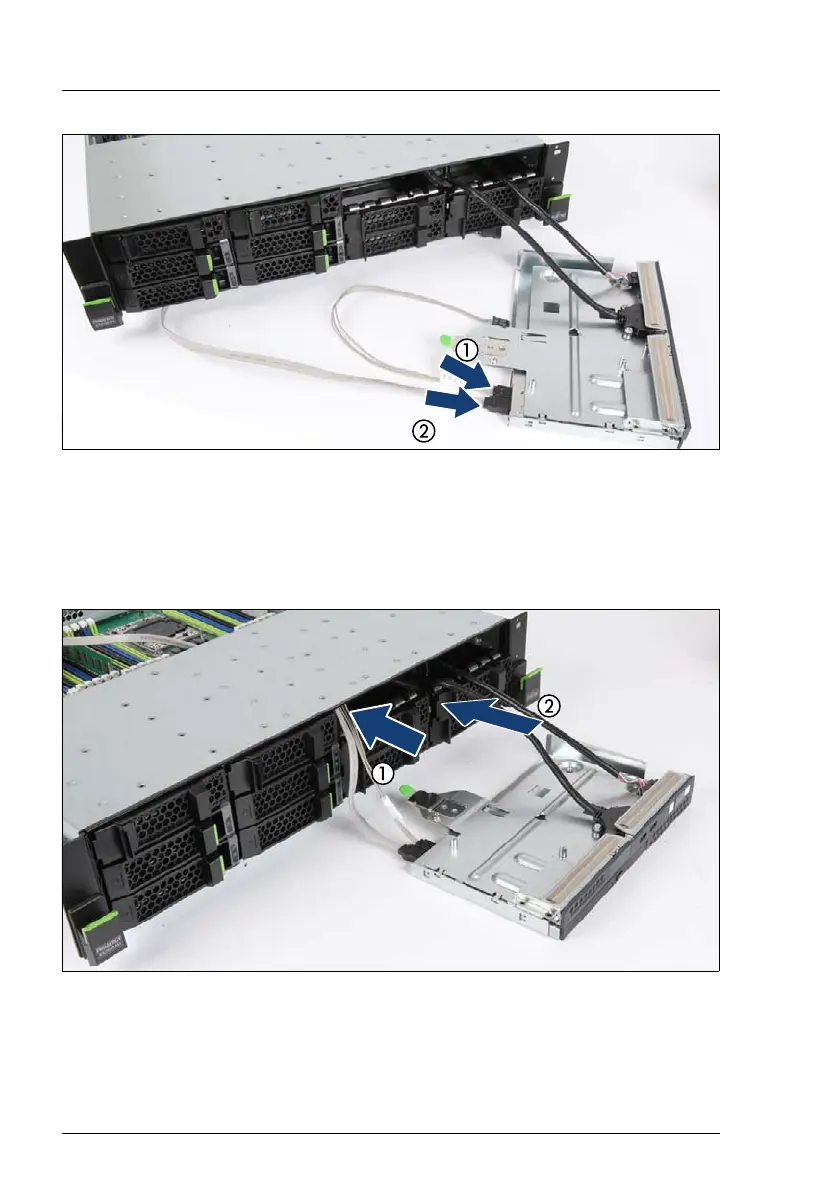

Figure 182: Instal
ling the ODD
Ê
Connect the cables to the ODD:
–
(1) ODD power cable C16 to connector "O
DD PWR".
–
(2) ODD SA
T
A c
able C3 to connector "ODD Data".
Figure 183: Instal
ling the front panel
module (A)
Ê
Run the ODD cables through the ODD bay opening as shown (1).
Ê
Insert the front panel modul
e (2).
281
283
