334 Upgrade and Maintenance Manual
RX2520 M4

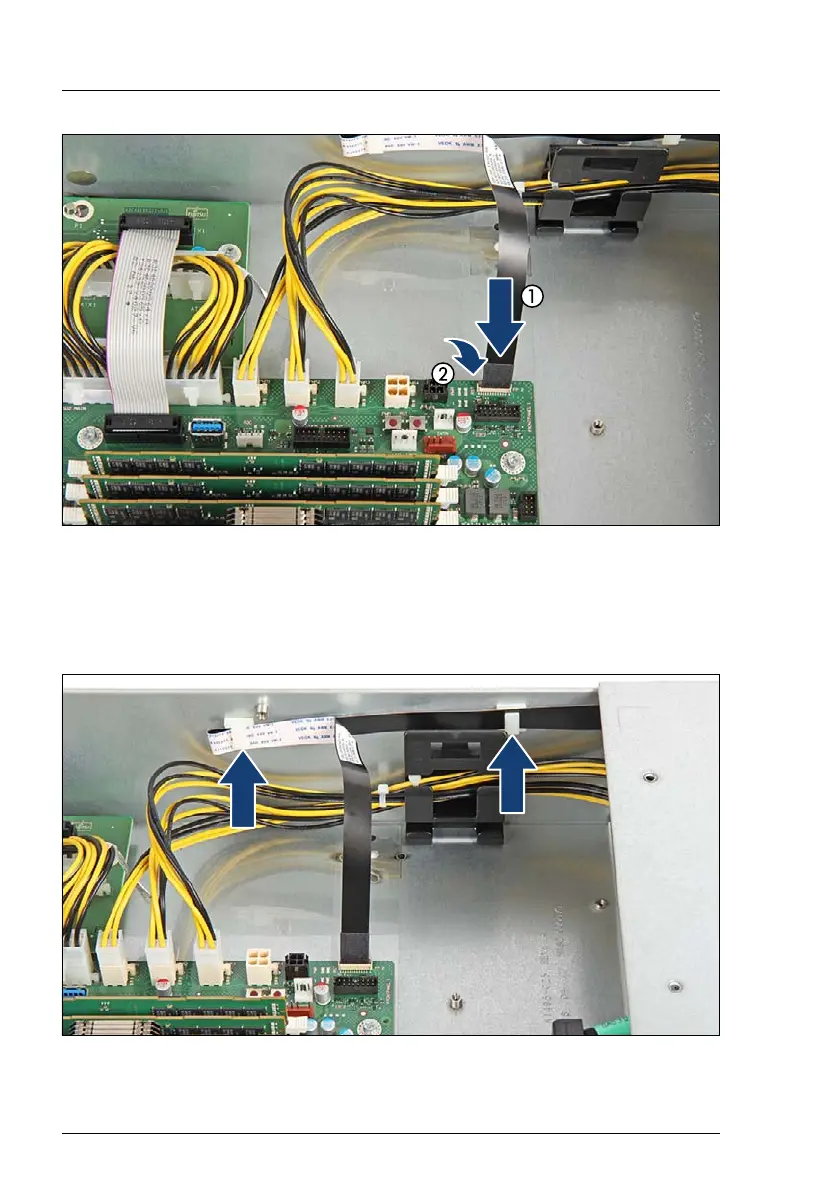

Figure 234: Connecting the front panel cable
Ê Insert the front panel cable (1). Please make sure that the front panel cable
is assembled as shown (blue marking).
Ê Press down the locking bar (2).
Figure 235: Routing the front panel cable on QRL
Ê Run the front panel cable through the cable clamp as shown.
