Fujitsu PRIMERGY RX2520 M4

122 Upgrade and Maintenance Manual RX2520 M4
Hard disk drive (HDD) and solid state drive (SSD)

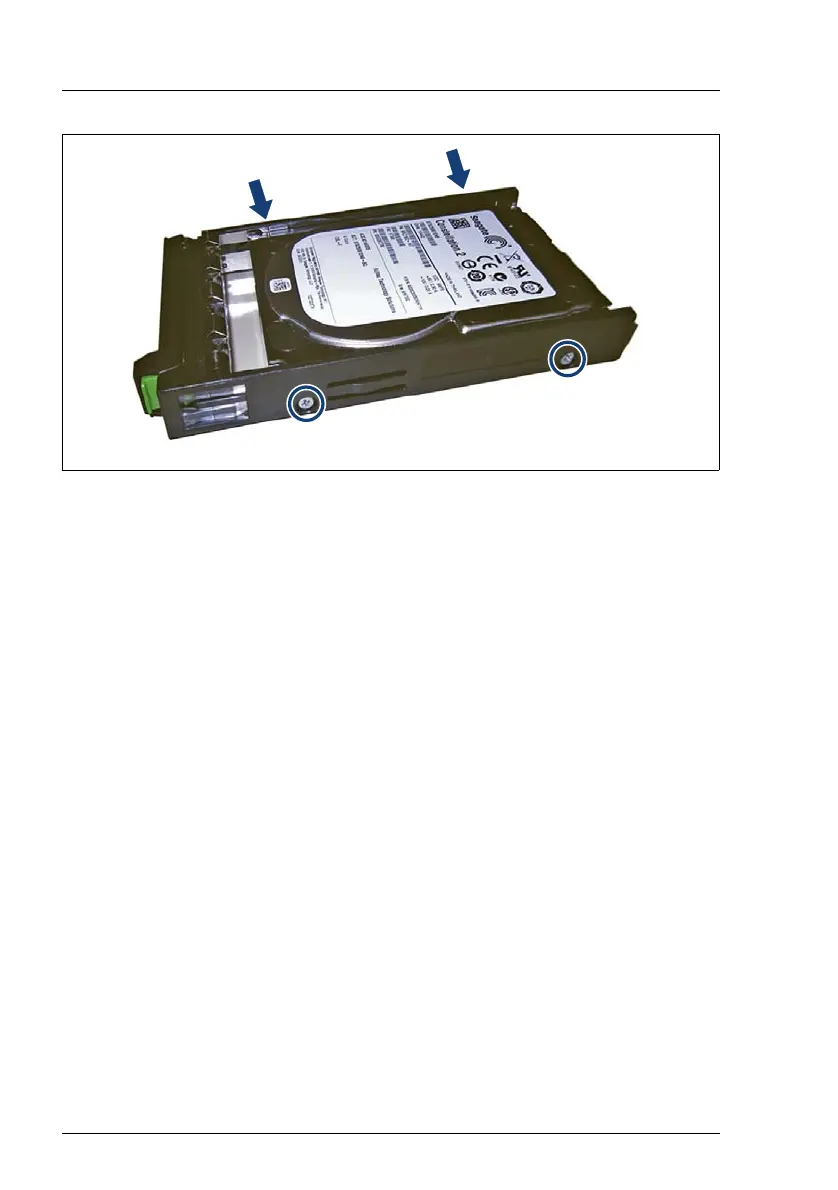

Figure 36: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (B)
Ê Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 2.5-inch installation frame
Ê Please proceed in reversed order.
