106
Upgrade and Maintenanc
e Manual
RX2520
M4
Power supply unit (PSU)

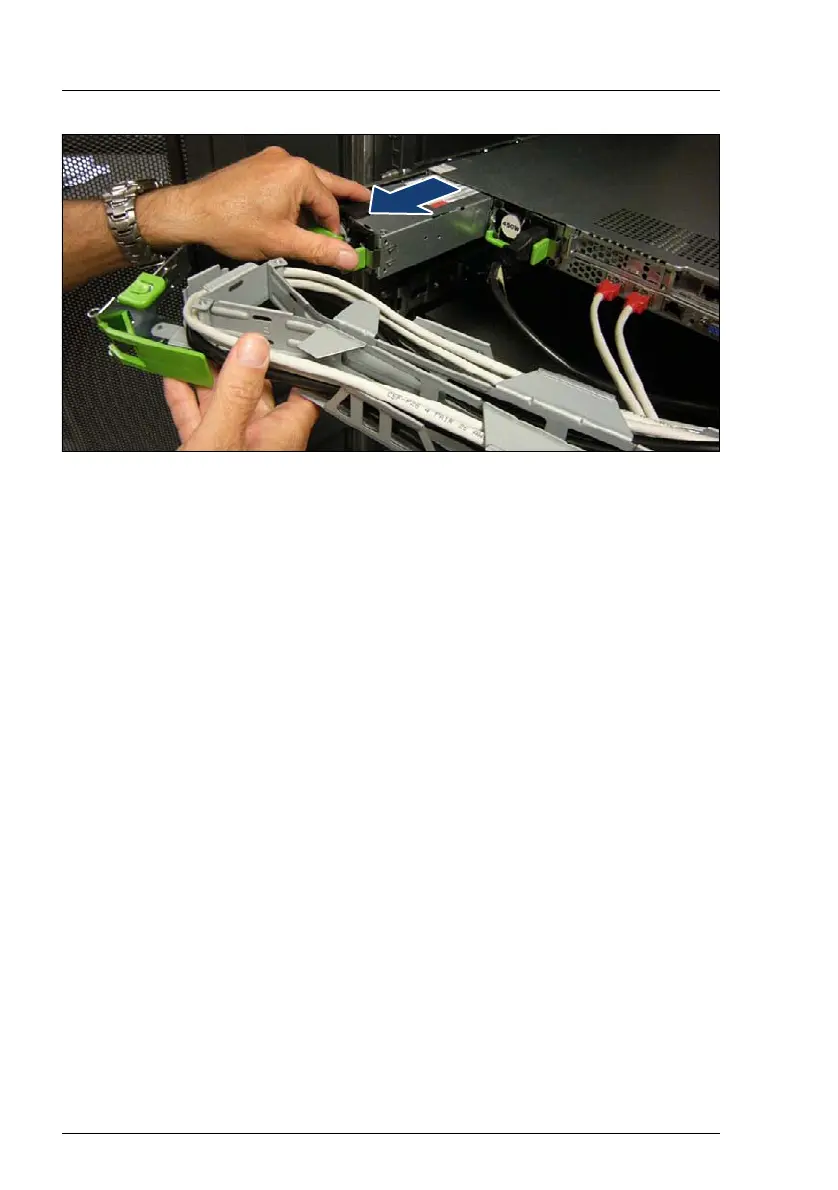

Figure 26: Removing the PSU
Ê
Remove the PSU and instal
l the dummy cover carefully
.
I
Note for PSU1: Remove the PSU1 carefully while lifting PSU1 a
nd
bringing PSU1 to the right, in order to avoid interference
Ê
Mount the complete assembly (CMA stopper
, the crossbar and the CMA)
again into the rail.
105
107
