Fujitsu PRIMERGY RX2520 M4 Upgrade And Maintenance Manual

RX2520 M4 Upgrade and Maintenance Manual 295
Accessible drives
I If you do not want to replace the LTO drive but remove it, you can remove
the LTO PWR/SAS cable C38 from the system board and from the PSAS
controller.

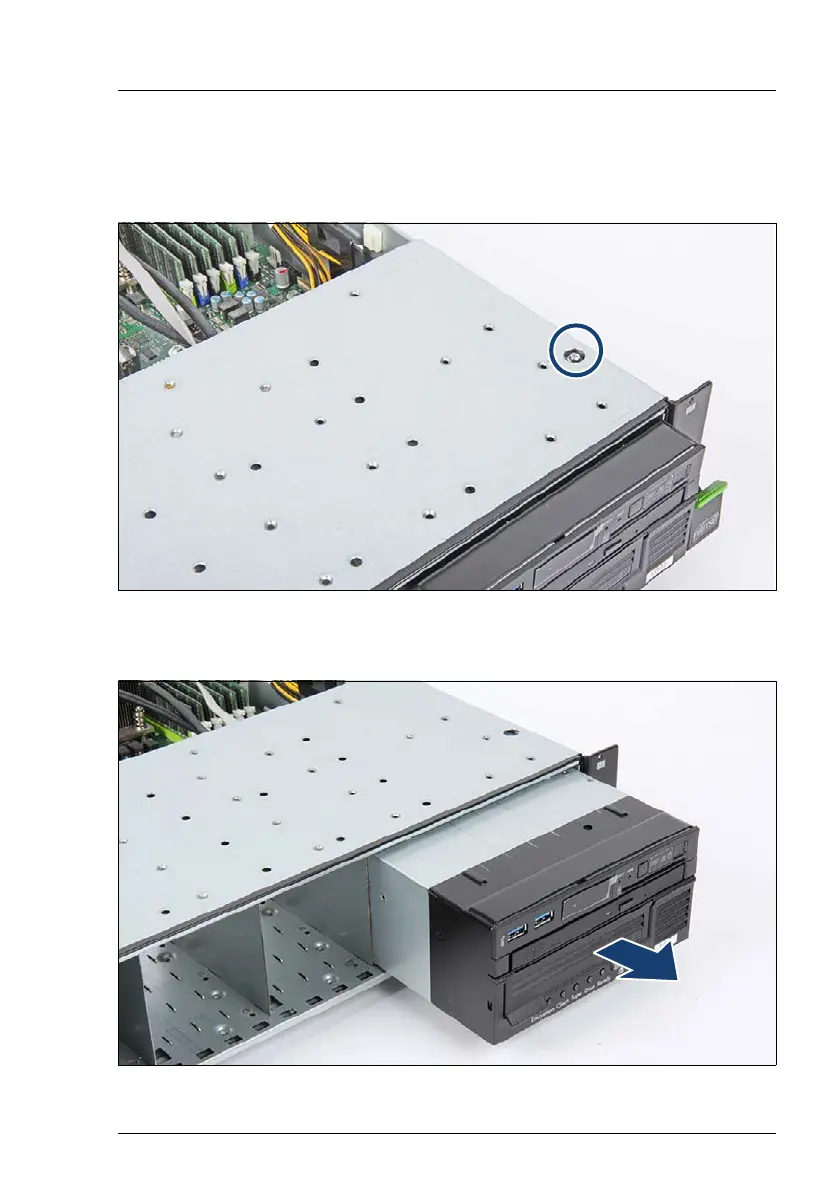

Figure 197: Removing a LTO drive
Ê Remove the screw.
Figure 198: Removing the LTO drive
