296 Upgrade and Maintenance Manual
RX2520 M4
Ê Unlock the front panel cage, see section "Removing the front panel cage" on
page 313.
Ê Pull out the front panel cage.

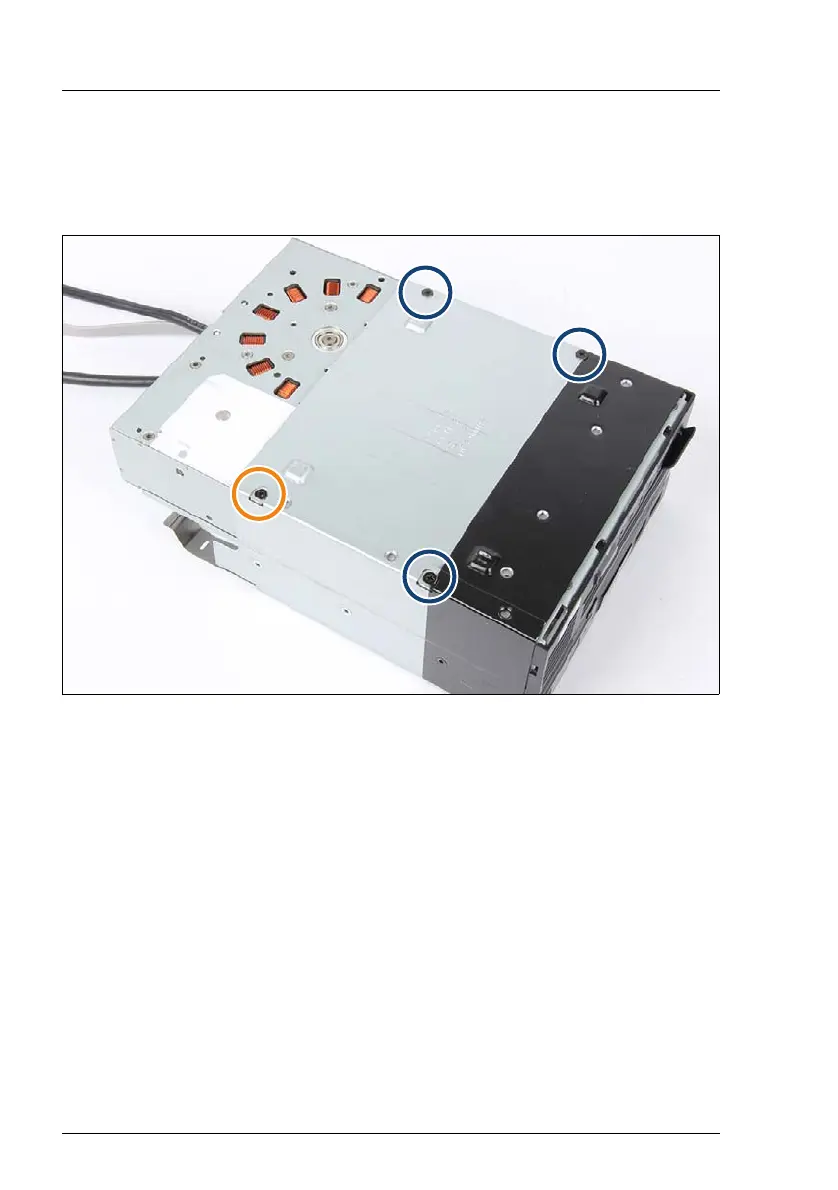

Figure 199: Removing the LTO drive
Ê In case of an LTO drive with four screw holes (e. g. LTO 5/6), remove four
screws (see blue and orange circles).
Ê In case of an LTO drive with three screw holes (e. g. LTO 7), remove three
screws (see blue circles).
