RX2520 M4
Upgrade and Maintenance Manual
341
Serial interface

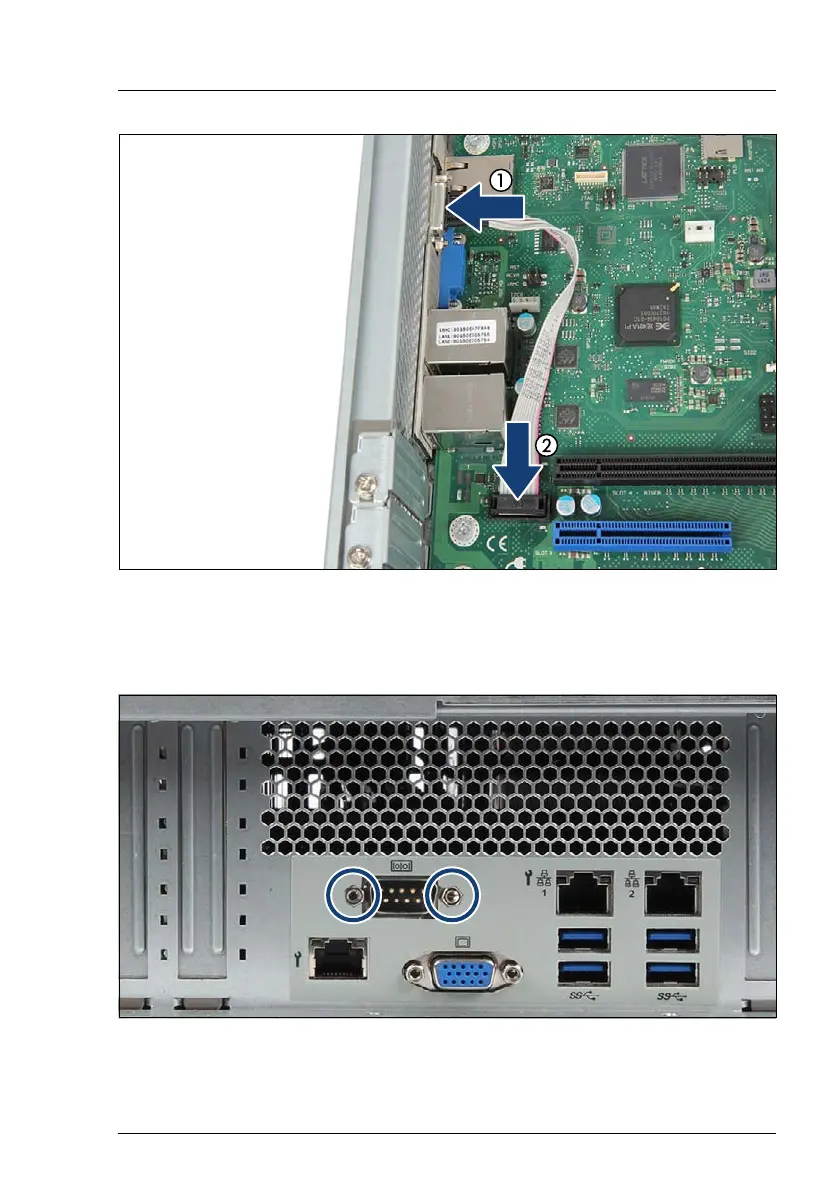

Figure 241: Installing the serial interface (A)
Ê
Insert the serial interface into the slot cover (1).
Ê
Connect the cable to the connector "SERIAL" on the system board (2)
Figure 242: Installing the serial interface (B)
Ê
Fasten the serial interface with two hexagon bolts (see circles).
