RX2520 M4
Upgrade and Maintenance Manual
203
Expansion cards and backup un
its

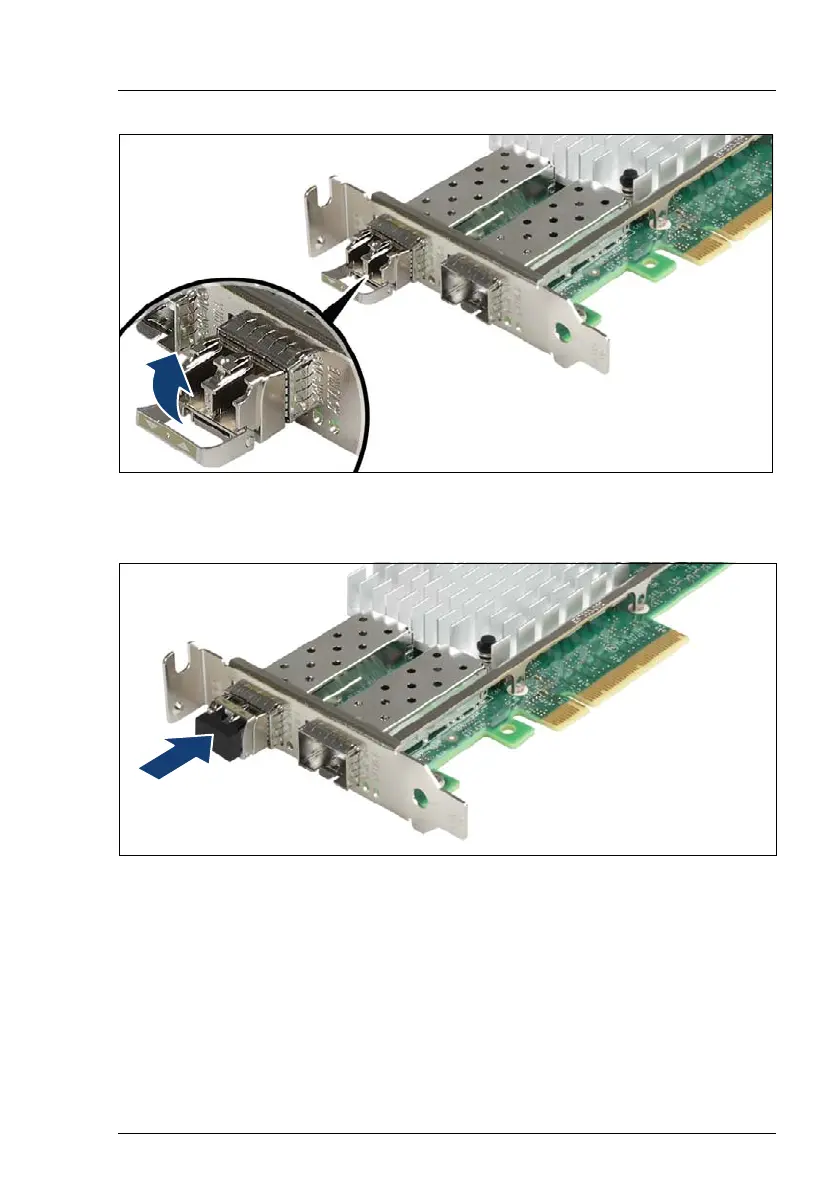

Figure 1
10:
Latching the locking bail
Ê
Carefully fold up and latch the locking bail.
Figure 1
1
1: Installing the protect
ive cap
Ê
If the SFP+ transceiver module is not immediately connected to an LC
connector
, attach the protective cap to the SFP+ transceiver module.
202
204
