RX2520 M4
Upgrade and Maintenance Manual
211
Expansion cards and backup un
its
Example Retimer controller

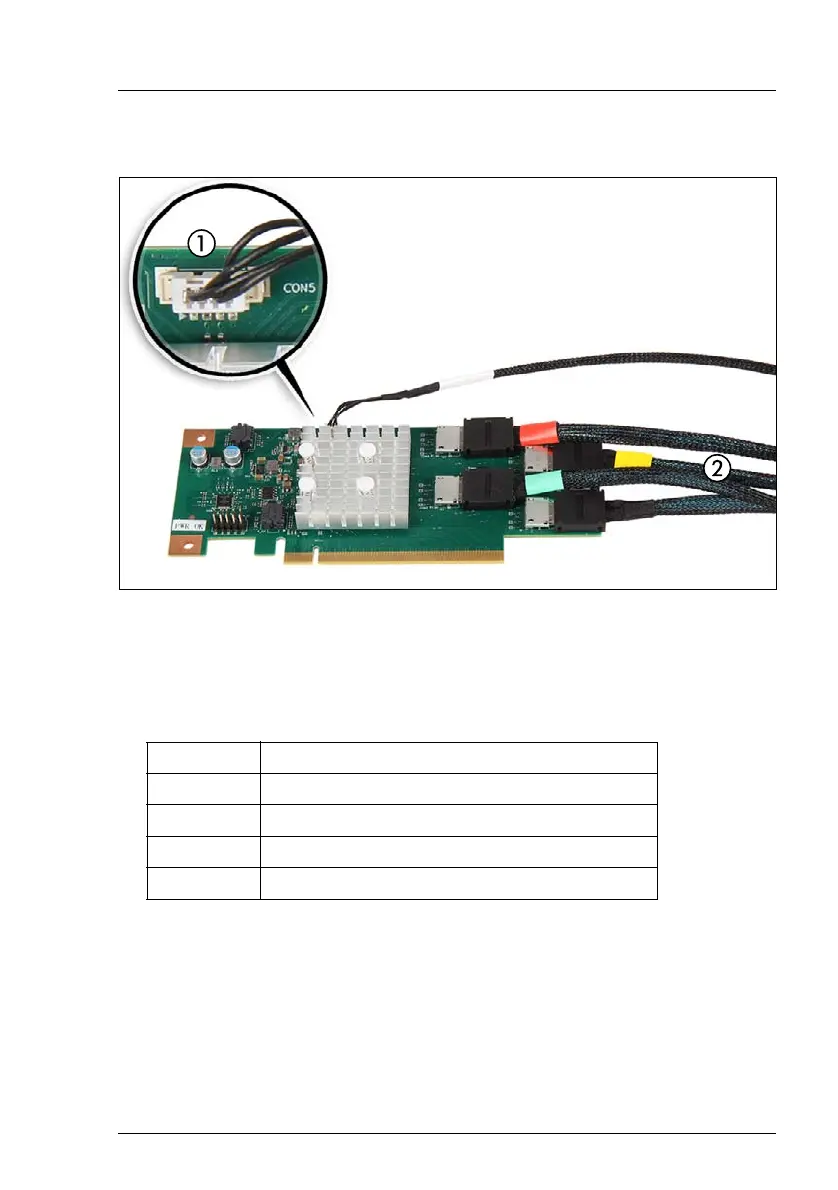

Figure 120: Connecting cables - Retimer controller
Ê
Connect the cables to the Retimer controller:
–
(1) VPP cables
–
(2) Color-coded Oculink cable:
Color
Connector on PCIe SSD backplane
red
P0_X1
yellow
P1_X2
green
P2_X3
black
P3_X4
210
212
