Expansion cards and backup units
Example RAID controller for PRAID EP4x0i

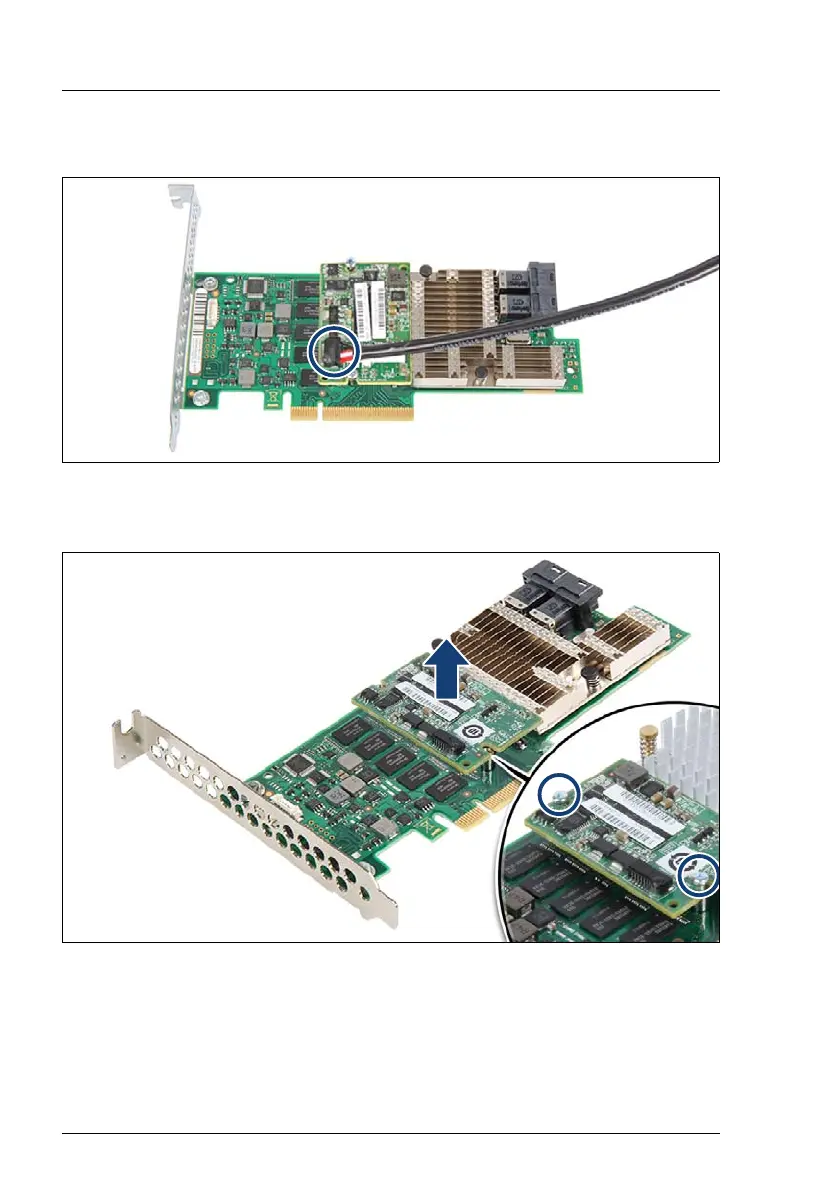

Figure 124: Disconnecting the FBU adapter cable from the TFM
Ê Disconnect the FBU adapter cable from the TFM.
Figure 125: Removing the TFM
Ê Remove the two screws (see arrow).
Ê Remove the TFM (see circles).
I Note for replacing the TFM:
The two spacer bolts can remain on the RAID controller.
