220 Upgrade and Maintenance Manual
RX2520 M4
Expansion cards and backup units

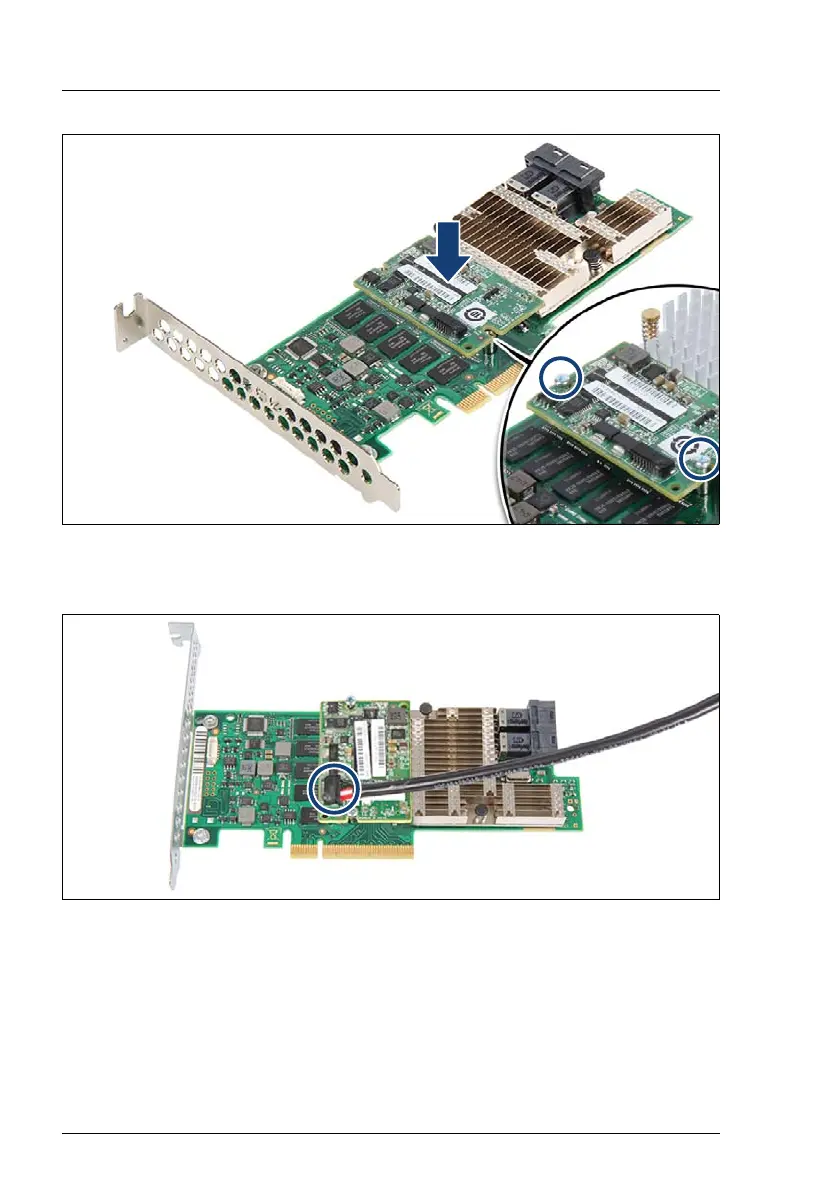

Figure 127: Installing the TFM (B)
Ê Secure the TFM on the RAID controller with the two screws from the TFM kit.
Figure 128: Connecting the FBU adapter cable to the TFM
Ê Connect the FBU adapter cable to the TFM.
Ê Install the expansion card with the TFM, see section "Installing an expansion
card" on page 208.
