Accessible drives
Connecting the RDX-drive
I For the cable plan, see chapter "Appendix B" on page 411.

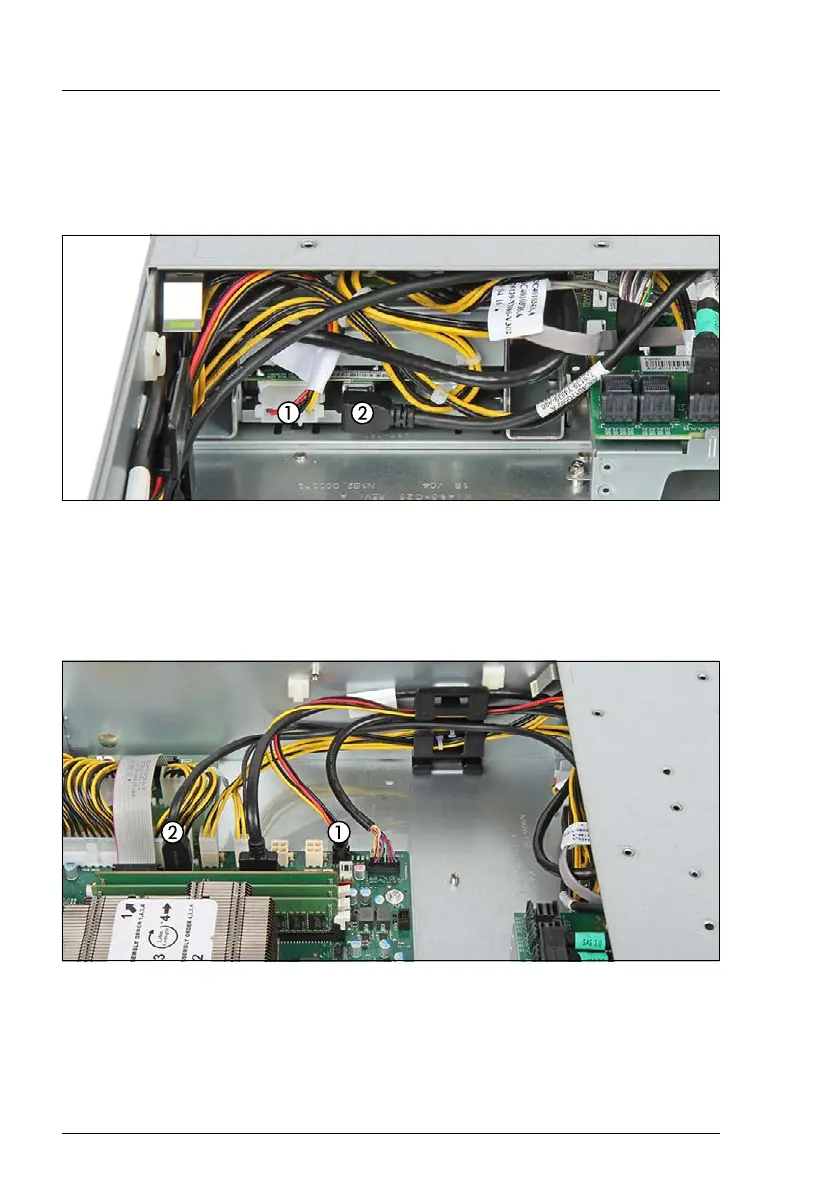

Figure 205: Connecting the cables to the RDX drive
Ê Connect the cables to the RDX-drive:
– (1) RDX power cable C41 to connector "RDX PWR".
– (2) RDX SATA cable C31 to connector "RDX Data".
Figure 206: Connecting the cables to the system board
Ê Connect the RDX cables to the system board:
– (1) RDX power cable C41 to connector "PWR ODD".
– (2) RDX SATA cable C31 to connector "USB3.0 Internal".
