System board and components

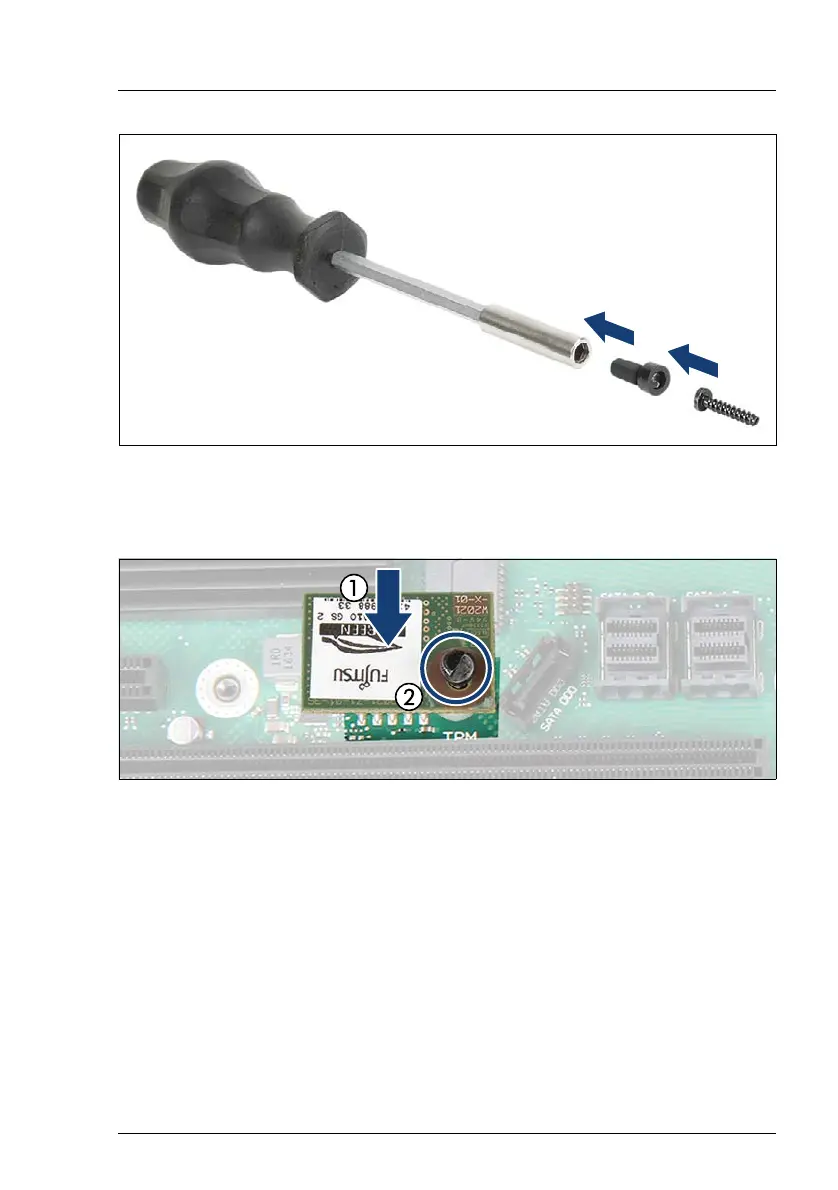

Figure 249: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
Figure 250: Installing the TPM
Ê Connect the TPM to the system board (1).
Ê Fasten the TPM with the special screw for the TPM using the TPM bit insert
(2).
For Japan: TPM module fixing tool (2) instead of TPM bit insert.
V CAUTION!
Do not fasten the screw too firmly. Stop it by extent where the head
of the screw lightly touches the TPM (torque value of 0.6 Nm).
The description of the torque value does not apply to Japan.
