TX300 S7 / RX350 S7 Upgrade and Maintenance Manual 227
Hard disk drives / solid state drives

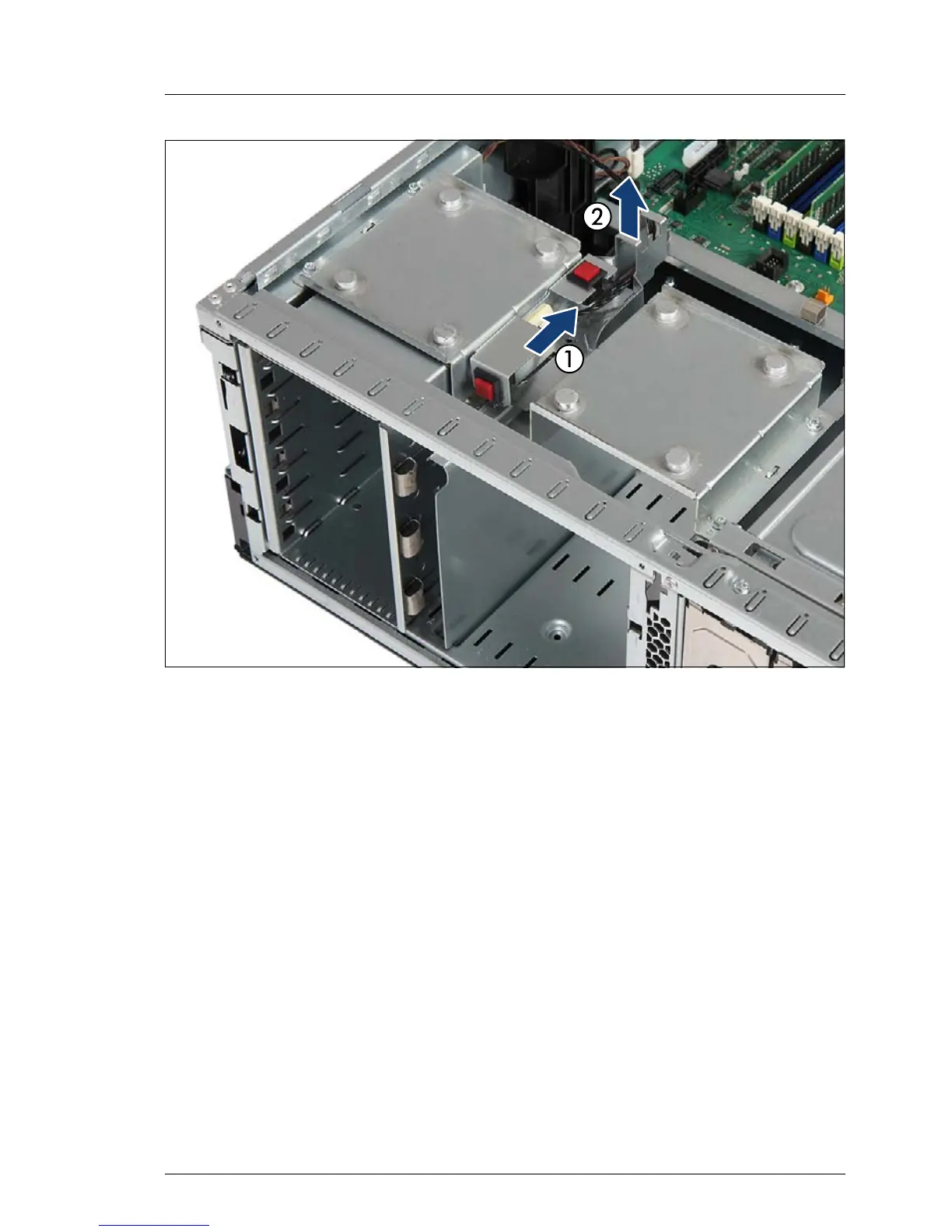

Figure 110: Removing the intrusion switch holder (B)
Ê Slide back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
Ê Remove the intrusion switch holder (2) and set aside.
Ê Leave the intrusion switch cable connected to the system board.
