Fujitsu PRIMERGY TX300 S7 - SAS Cabling with 24 X 2.5-Inch Hdds, One SAS Controller and SAS Expander Board

928 Upgrade and Maintenance Manual TX300 S7 / RX350 S7
Cabling
16.2.18 SAS cabling with 24x 2.5-inch HDDs, one SAS
controller and SAS expander board

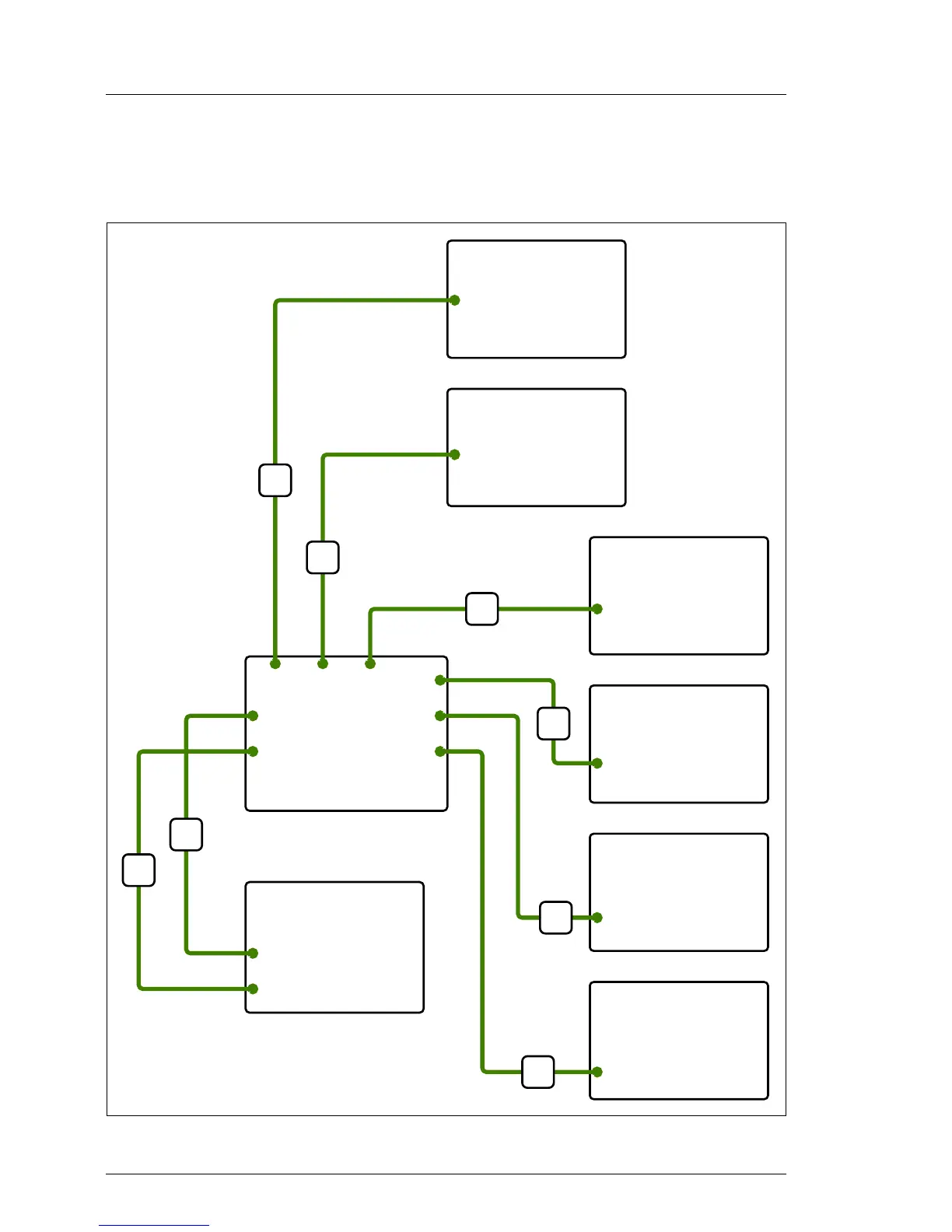

Figure 653: SAS cabling with 24x 2.5-inch HDDs, one SAS controller, SAS expander board
4x 2.5-inch HDD
Backplane 3
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
15
4x 2.5-inch HDD
Backplane 2
X1
4x 2.5-inch HDD
Backplane 1
X1
4x 2.5-inch HDD
Backplane 4
X1
X1
15
15
15
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
16
16
4x 2.5-inch HDD
Backplane 6
X1
4x 2.5-inch HDD
Backplane 5
X1
16
16
