TX300 S7 / RX350 S7 Upgrade and Maintenance Manual 677
Accessible drives
12.3.3 Removing an accessible drive

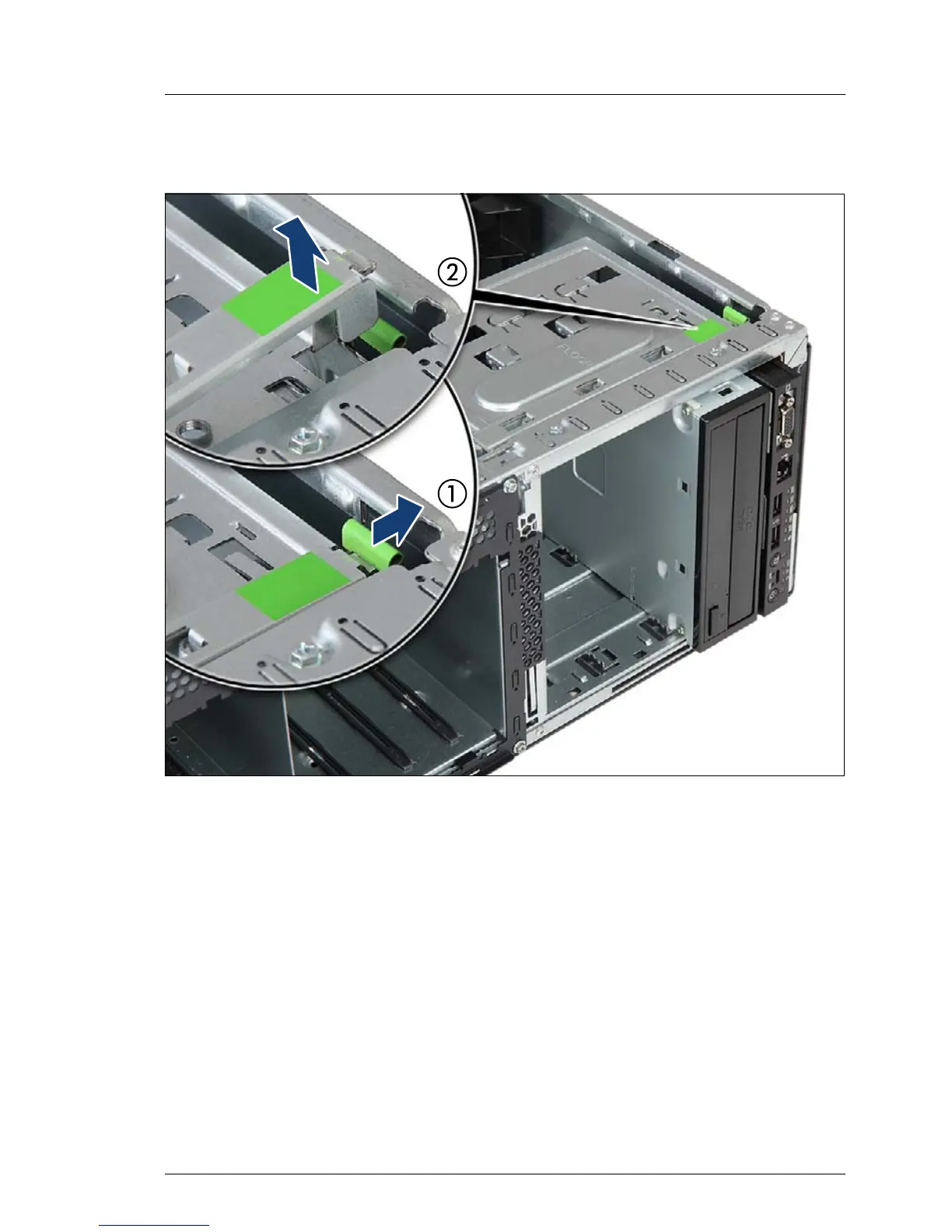

Figure 468: Opening the accessible drive locking bar
Ê Remove all cables from the accessible drive.
Ê Press out on the locking latch to disengage the accessible drive locking bar
(1).
Ê Fold up the accessible drive locking bar (2).
