672 Upgrade and Maintenance Manual TX300 S7 / RX350 S7
Accessible drives
12.2.5.3 SAS backup drive (LTO3)
Ê Connect the SAS and power cables according to your configuration as
shown in the tables above.

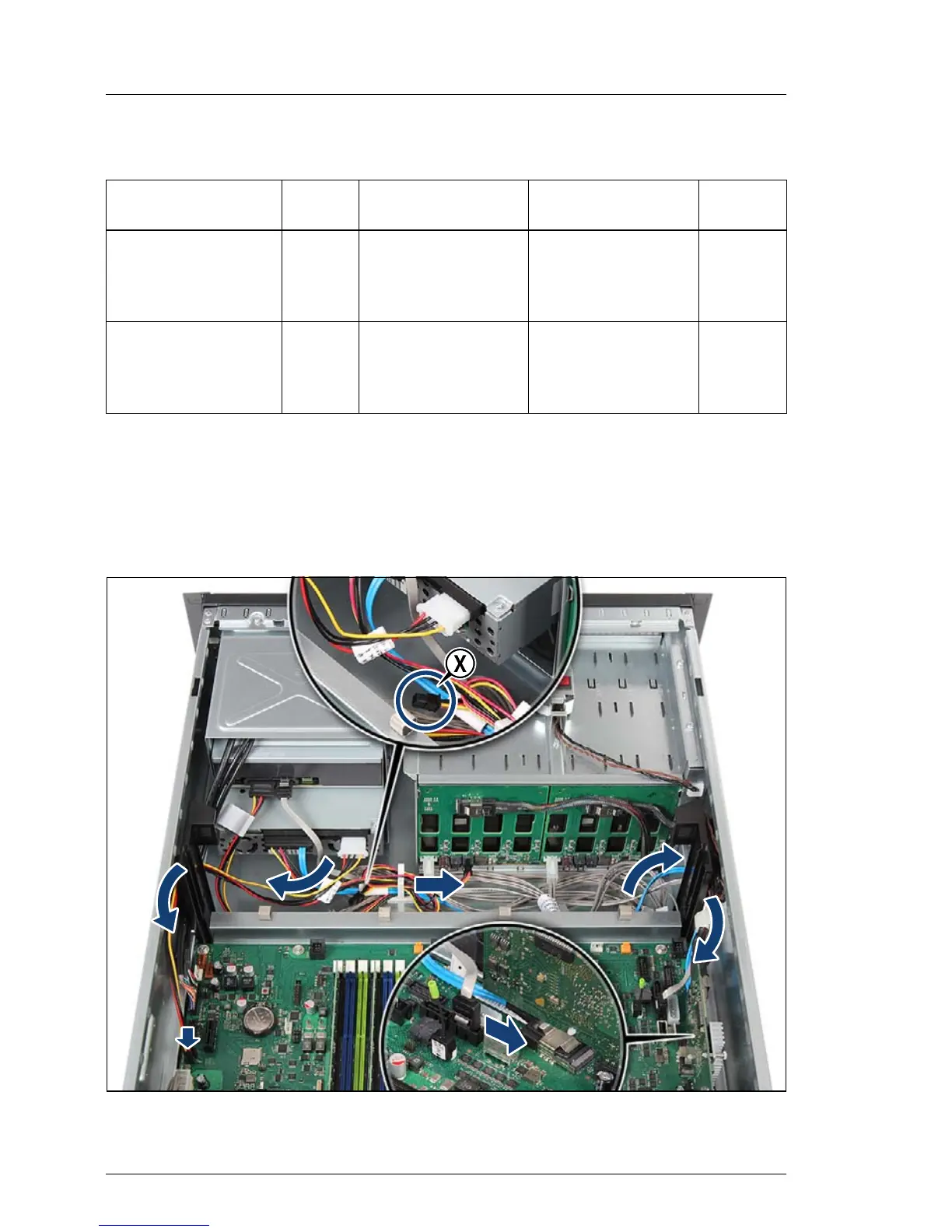

Figure 466: Routing cables
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
SAS Backup Drive
SAS / Power cable
Y3969-V401
7
SAS backup drive
(P1, 22-pin
connector)
System board
connector SAS 1-4
(P2, 36-pin Mini SAS
connector)
1
1
Requires installed Onboard SAS enabling key (see section "Installing the onboard SAS
enabling key" on page 848)
16.2.1
Backup Drive Power
Cable
Y4029-V1
5 SAS backup drive
System board
connector PWR
HDD / ODD
(P1, 4-pin connector)
16.2.3
16.2.15
