226 Upgrade and Maintenance Manual TX300 S7 / RX350 S7
Hard disk drives / solid state drives
Ê Remove the system fan holder as described in section "Removing the
system fan holder" on page 389.
Ê Disconnect all cables from the defective SAS backplane.
7.2.8.3 Removing the 2.5-inch HDD bay top cover
I The 2.5-inch HDD front panel does not need to be removed in order to
replace a 2.5-inch HDD SAS backplane. In the figures, the front panel
has been removed for illustration purposes only.

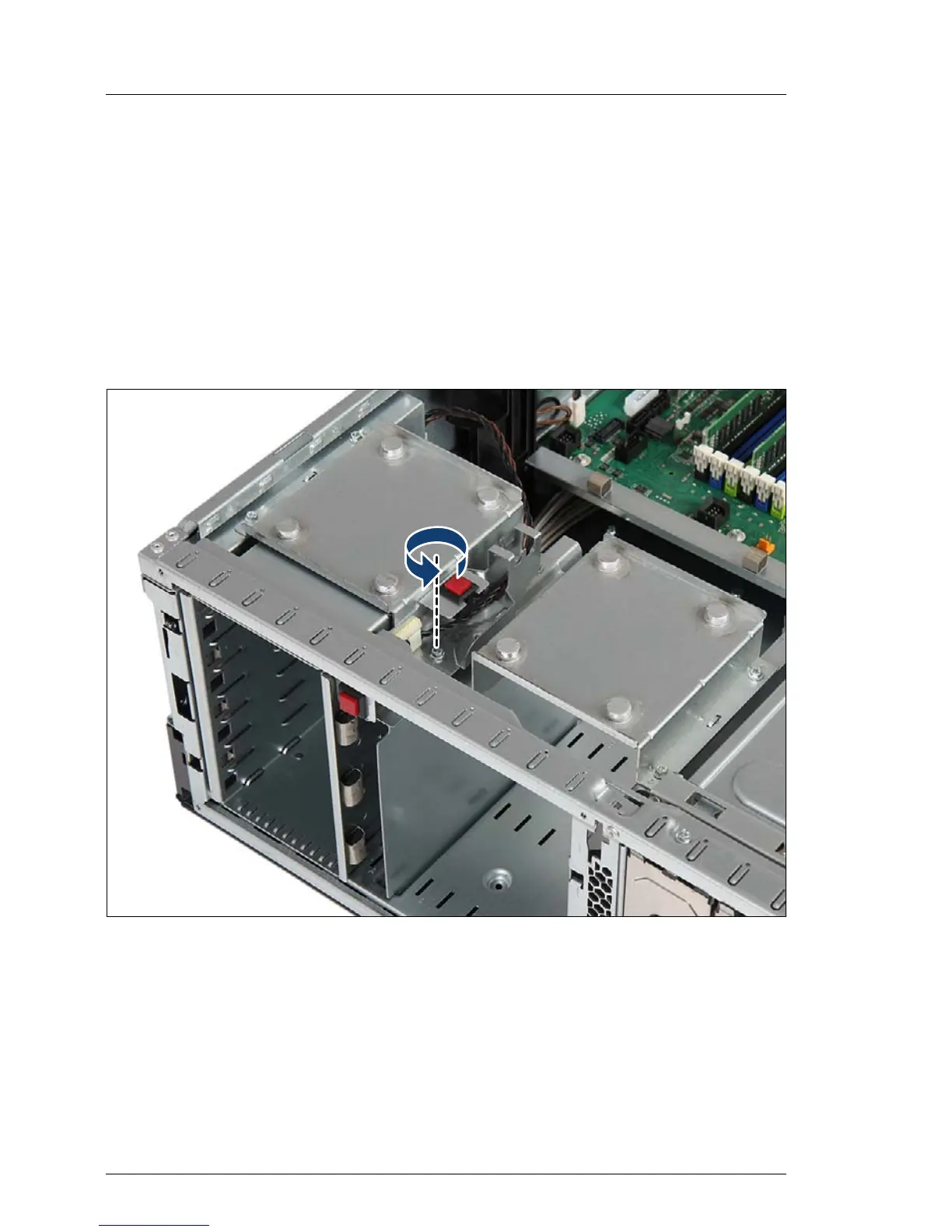

Figure 109: Removing the intrusion switch holder (A)
Ê Remove one screw from the intrusion switch holder as shown.
