Expansion cards and backup units

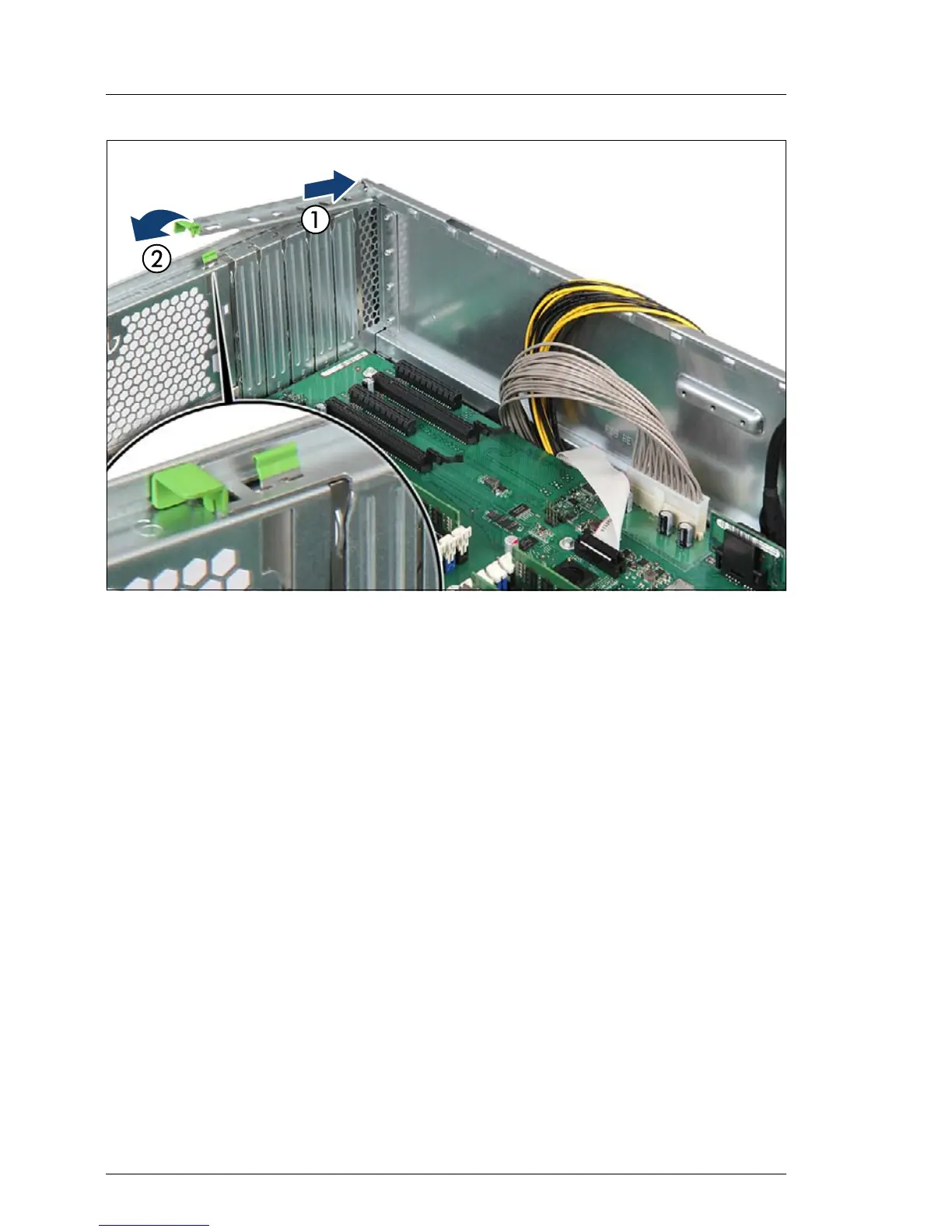

Figure 310: Installing a PCI slot bracket (B)
Ê Clip on the PCI slot bracket clamp (1).
Ê Fold down the locking handle on the PCI slot bracket clamp until it locks in
place (2, see close-up).
9.4.2.6 Handling GPGPU cables
Ê If no GPGPU cards are to be reinstalled in the system, perform one of the
following two tasks:
Ê Secure the GPGPU power cables on the chassis wall with adhesive tape.
Ê Remove the GPGPU power cables from the power backplane as
described in section "Removing the power backplane" on page 189.
