464 Upgrade and Maintenance Manual TX300 S7 / RX350 S7
Expansion cards and backup units
Ê Fold down the GPU card mounting bracket as shown.

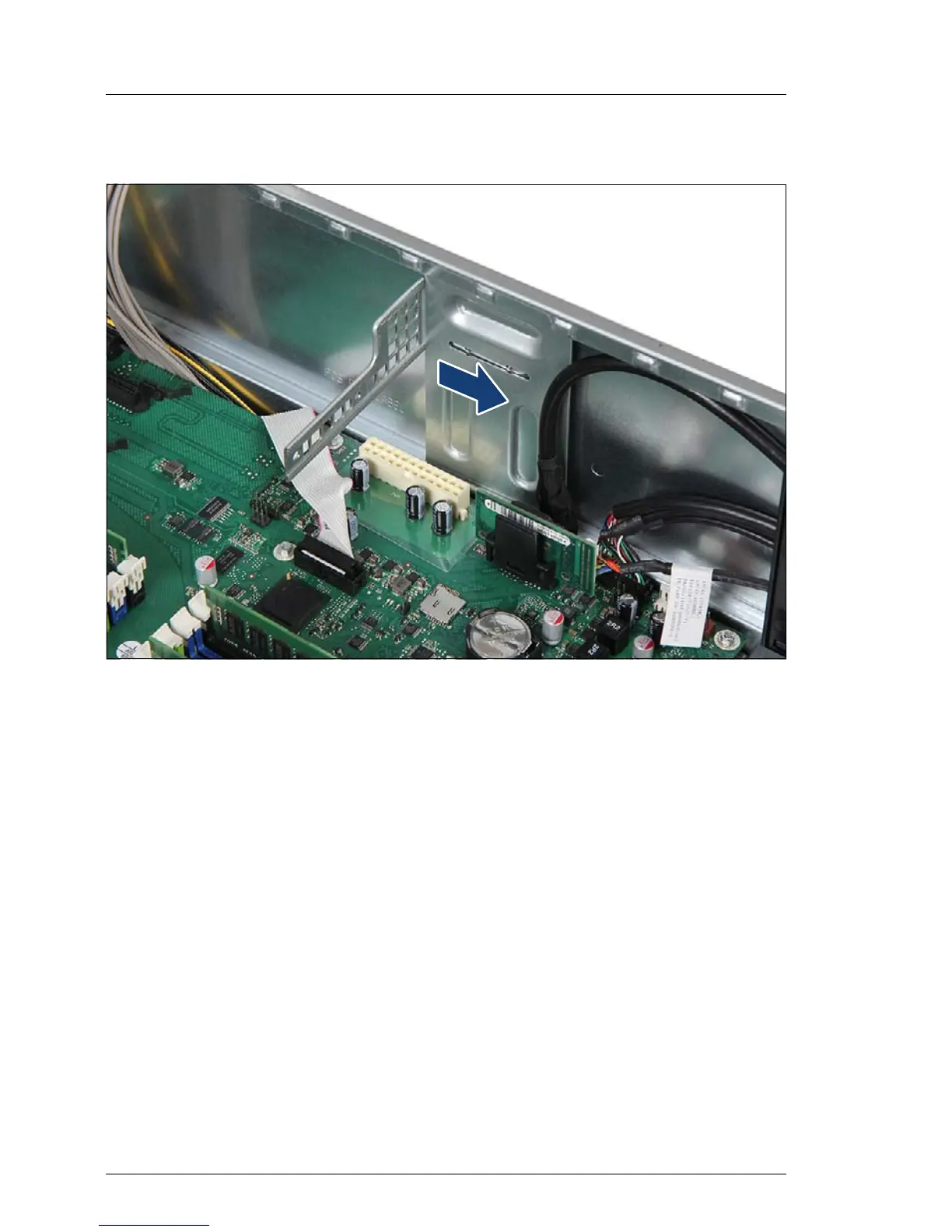

Figure 293: Installing the GPGPU mounting bracket (C)
Ê Slide the GPU card bracket towards the server front as far as it will go.
