TX300 S7 / RX350 S7 Upgrade and Maintenance Manual 619
Processors

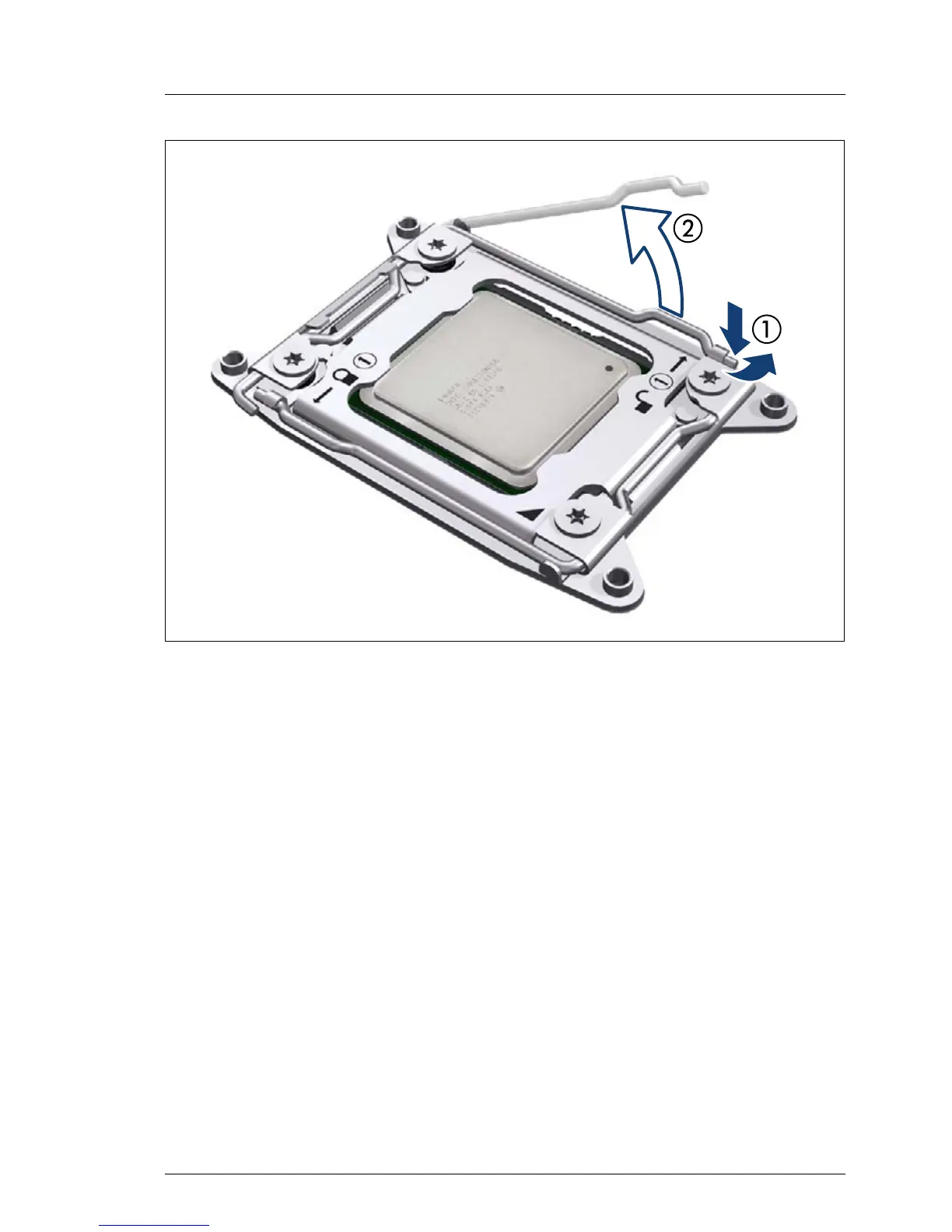

Figure 419: Opening socket release lever 1
Ê Unlatch the socket release lever marked Open 1st by pushing it down and
away from the socket (1).
Ê The socket release lever will slightly lift up (2).
