TX300 S7 / RX350 S7 Upgrade and Maintenance Manual 725
Accessible drives
Local Service Display (LSD)
Ê Connect the LSD, SATA and power cables as shown in the tables above.

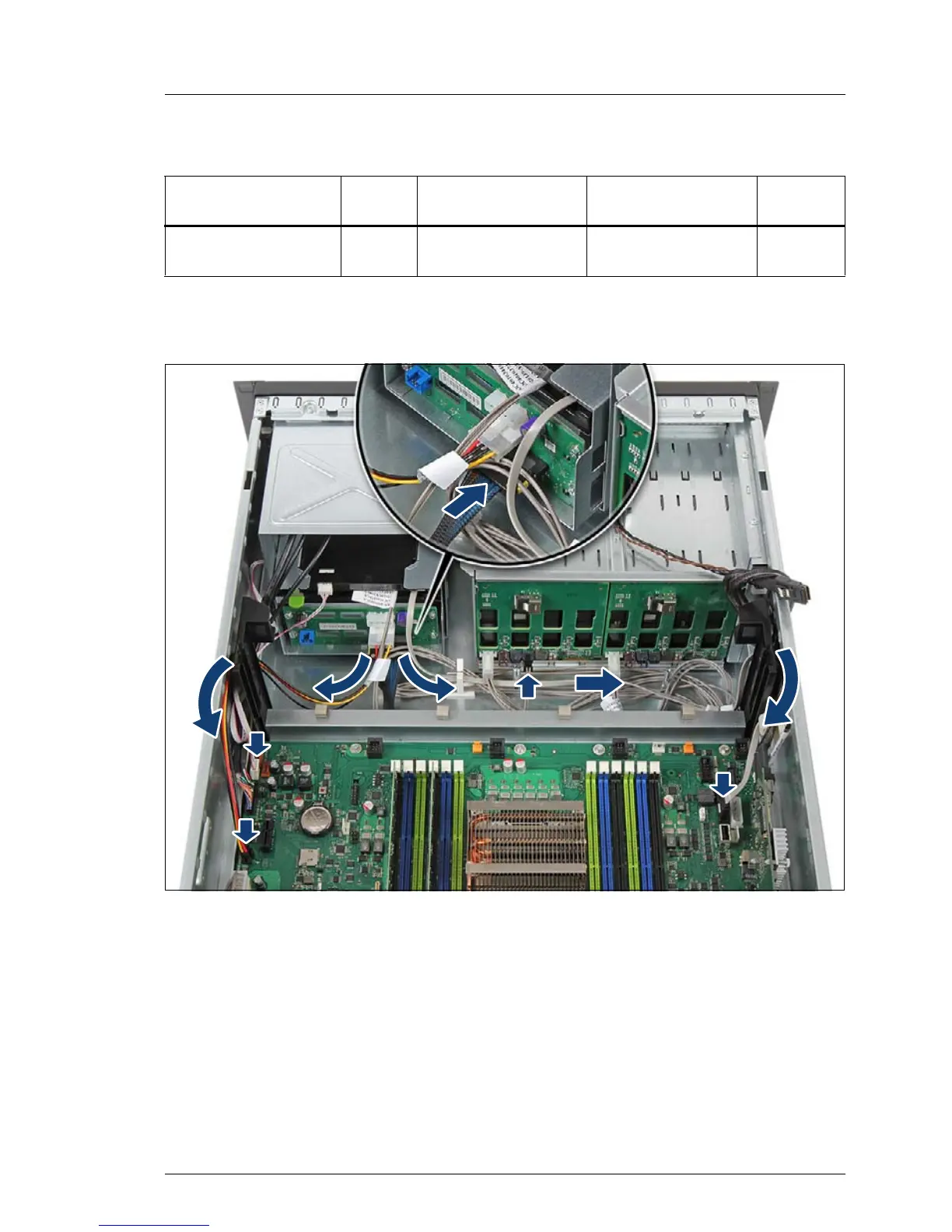

Figure 508: Routing cables
Ê Run SATA cable T26139-Y3958-V205 along the drive bays and through the
cable clamp on the server floor as shown.
Ê Run the SATA cable through the cable guide.
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
LSD cable
Y3718-V301
14 LSD
System board
connector SMB 1
16.2.1
