742 Upgrade and Maintenance Manual TX300 S7 / RX350 S7
Accessible drives
Ê Ensure that the slimline ODD mounting bracket is properly seated on the
drive as shown.

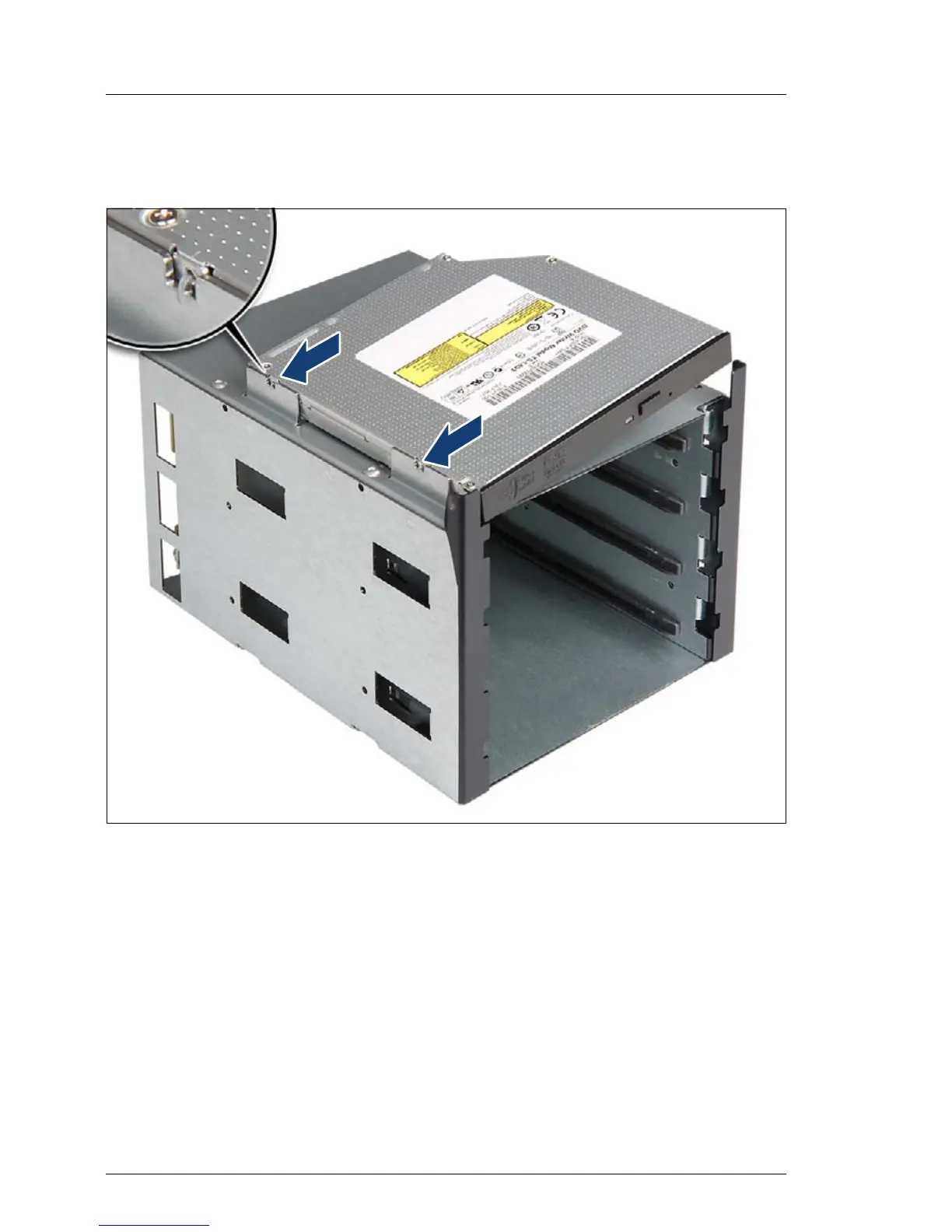

Figure 519: Installing the slimline ODD on the HDD extension box (A)
Ê Hook the two latches on the left edge of the slimline ODD into the metal
guides on the 4x 3.5-inch HDD extension box as shown (see close-up).
