TX300 S7 / RX350 S7 Upgrade and Maintenance Manual 747
Accessible drives

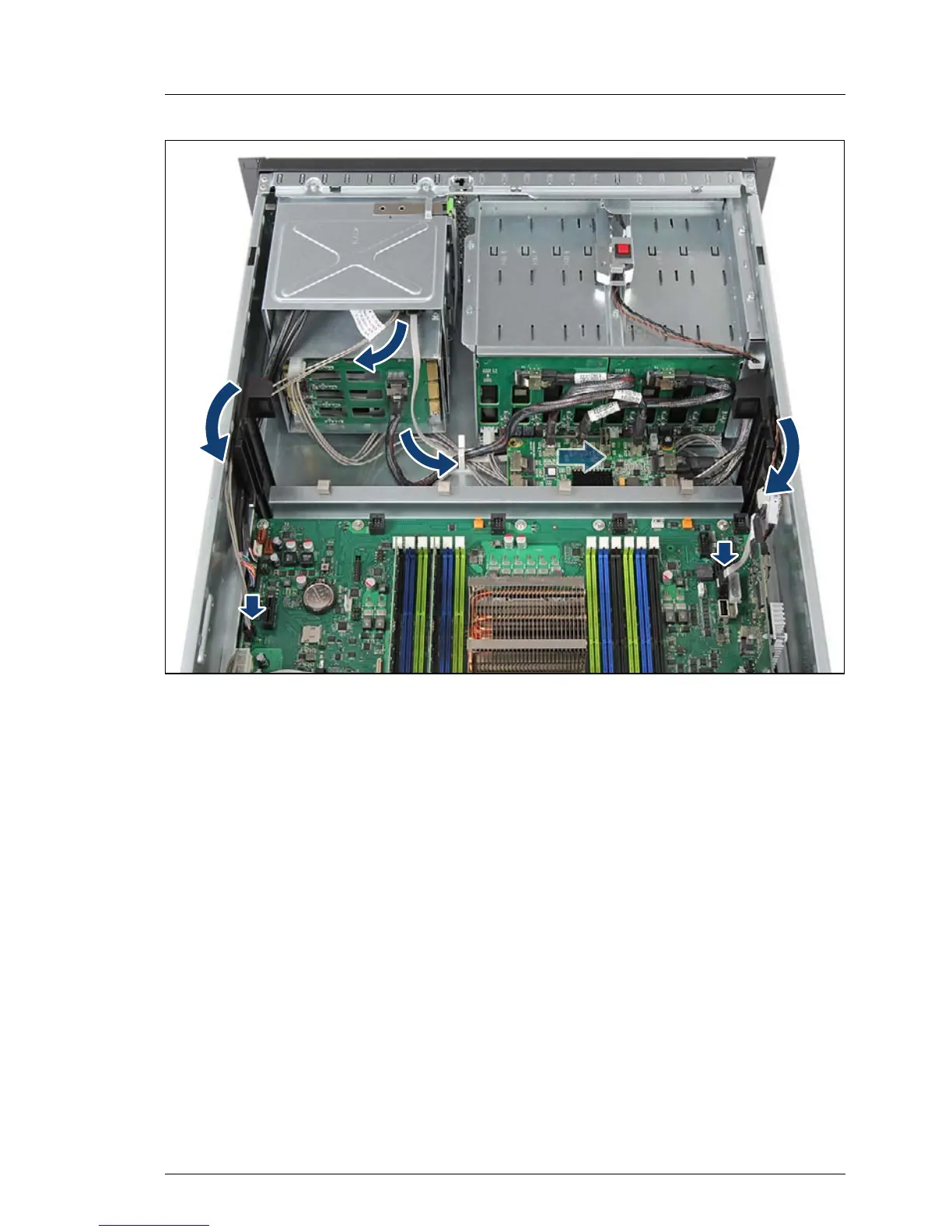

Figure 523: Routing cables
Ê Run SATA cable T26139-Y3958-V205 along the drive bays and through the
cable clamp on the server floor as shown.
Ê Run the SATA cable through the cable guide.
