TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 271
Hard disk drives / solid state drives

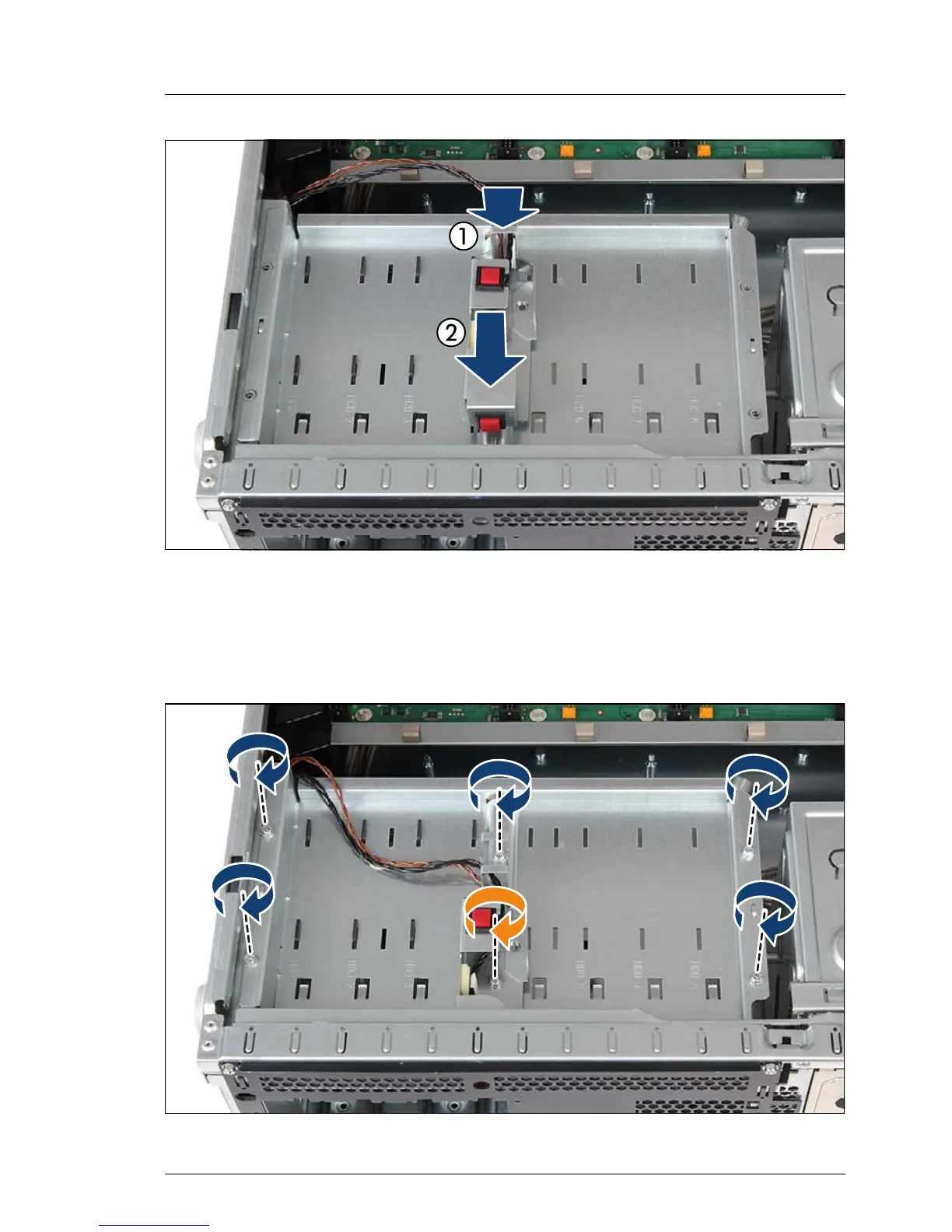

Figure 176: Mounting the 3.5-inch HDD bay top cover (B)
Ê Place the intrusion switch holder on the HDD bay top cover as shown (1).
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 177: Mounting the 3.5-inch HDD bay top cover (C)
