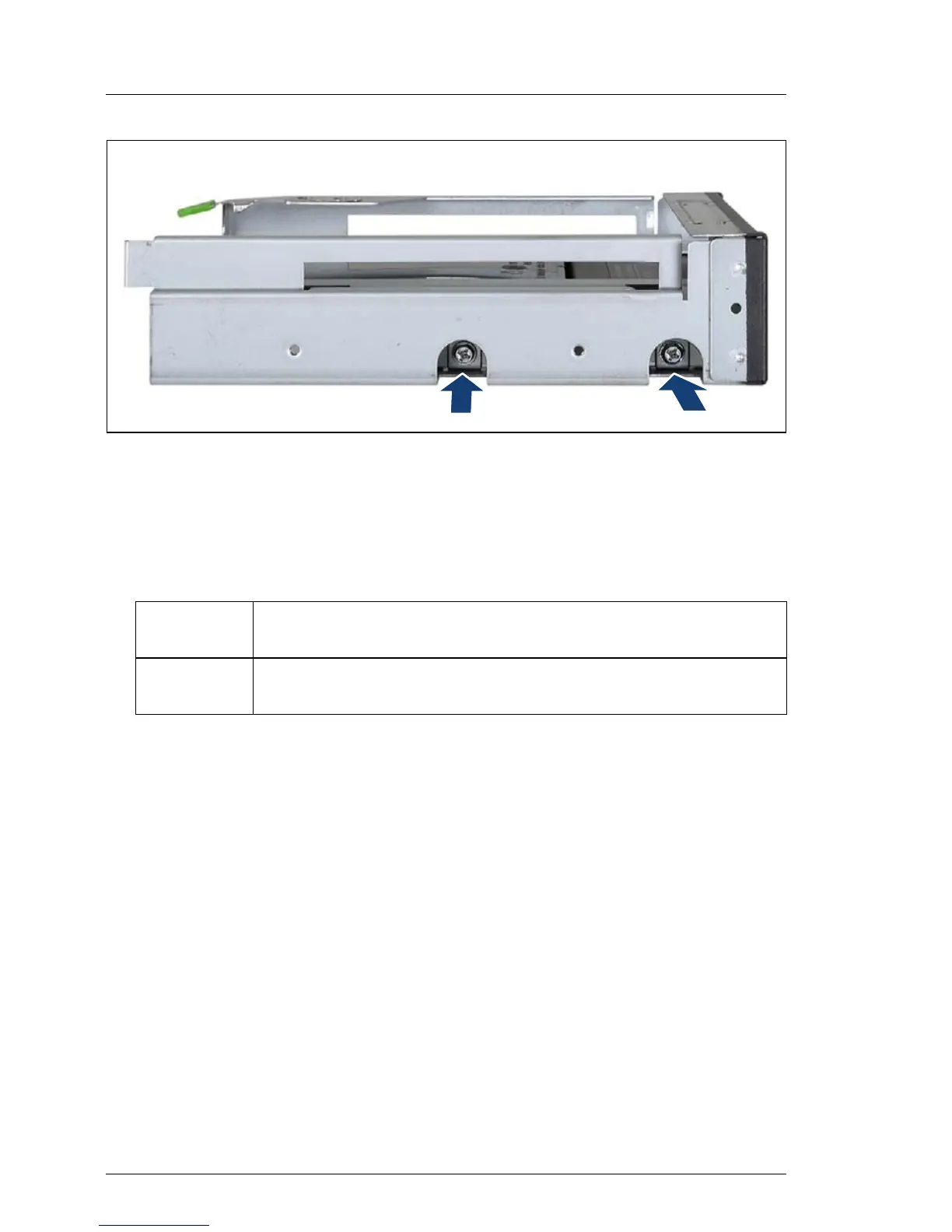

Figure 426: Installing the 3.5-inch installation frame in the Multibay box (B)
Ê Secure the installation frame in the Multibay box with two screws (M3 x 6
mm) on either side.
Ê Before inserting the Multibay box into the chassis, connect the LSD cable to
the LSD module:
12.5.1.4 Removing accessible drive dummy covers
Removing accessible drive filler covers
Ê Remove the accessible drive filler cover from installation bay 1 as described
in section "Accessible drive filler covers" on page 94.
V CAUTION!
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Removing accessible drive covers
Ê Remove the accessible drive cover from installation bay 1 as described in
section "Accessible drive covers" on page 96.
Cabling
list no.
1
1
The cabling list numbers refers to section "List of used cables" on page 736.
Cable
14
LSD cable
(T26139-Y3718-V301)
