Upgrade and Mai
ntenance Manual
TX300 S
8 / RX350 S8
Converting a tower server to a rack server
15.3
Removing the accessibl
e drive cage

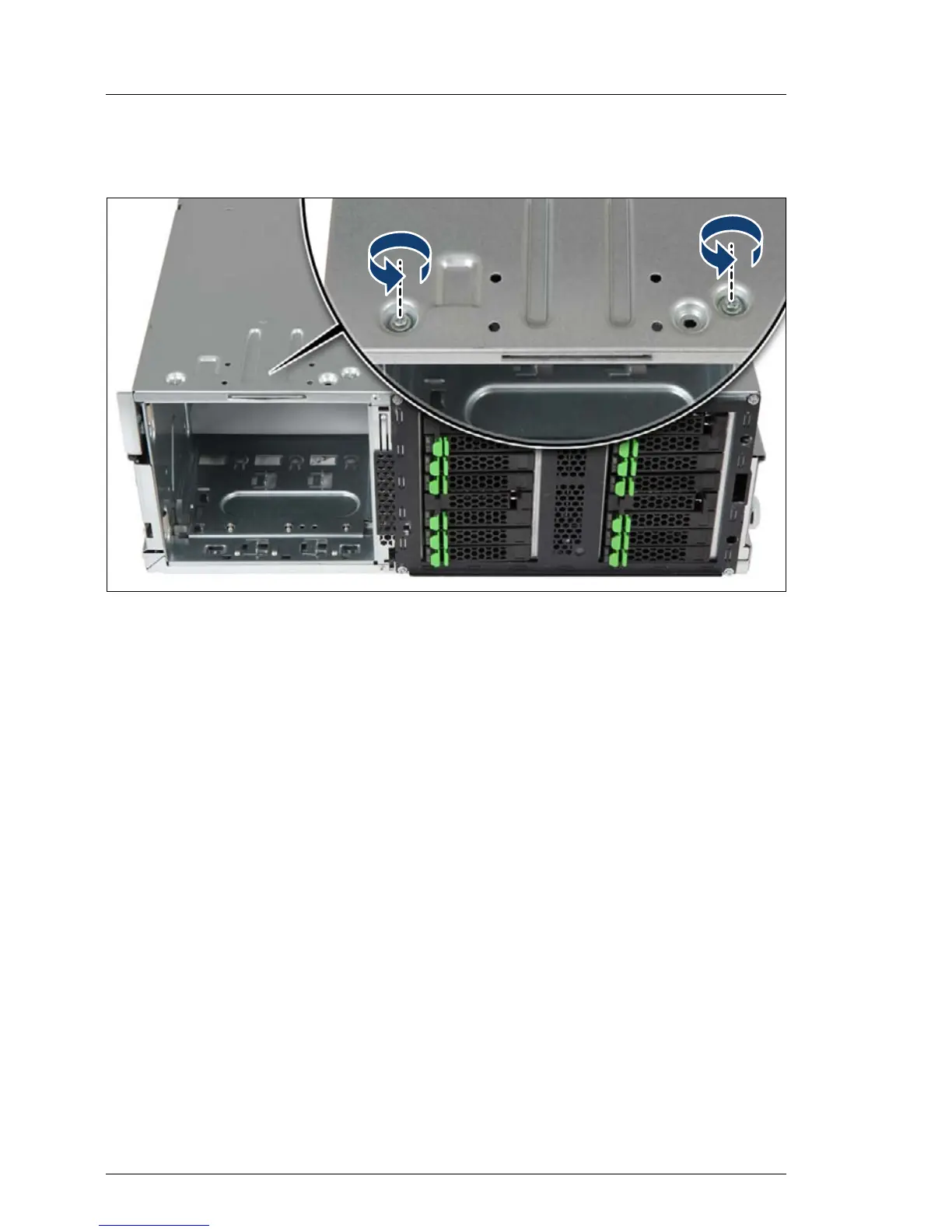

Figure 557: Detaching the
accessible drive c
age (A)
Ê
Remove two screws from the bottom side of the server as shown.
Ê
Bring the server back to its horizont
al position.
I
At least two people are needed to turn over a full
y equipped server
.
Remove hard disk drives and power supply modul
es in order to
facilitate the t
ask.
713
715
