9.2.1.2 Preparing the expansion card
Standard expansion card
V CAUTION!
In order to satisfy cooling requirements, ensure to use a perforated full
height slot bracket (C26192-Y35-C20).

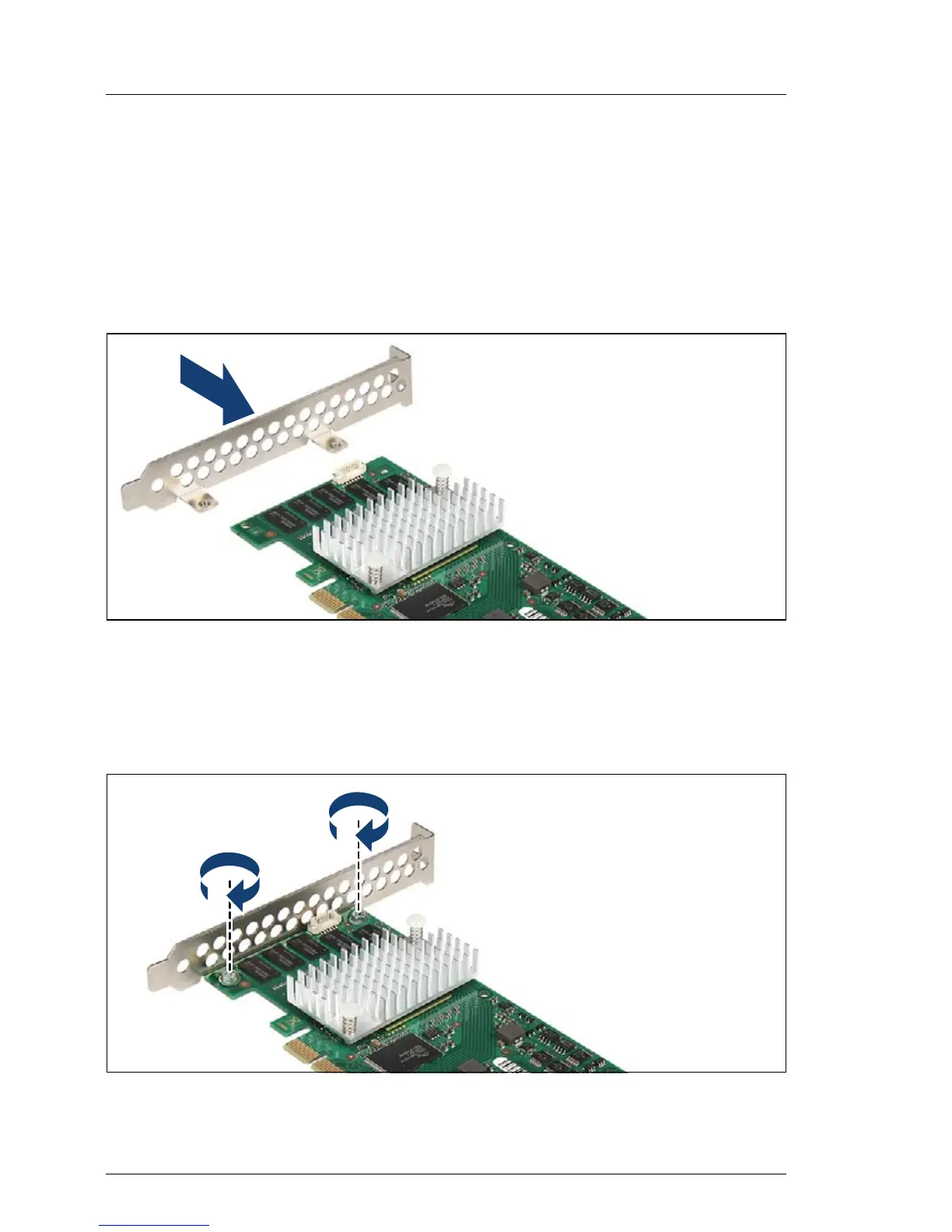

Figure 236: Mounting the PCI slot bracket (A)
Ê Place the controller on the mounting tabs on the slot bracket.
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Figure 237: Mounting the PCI slot bracket (B)
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
