I For detailed information on PSU configuration settings, please refer to
the "iRMC S4 - Integrated Remote Management Controller" user guide.
6.1.2 Assembly rules
– Mixed assembly of hot-plug PSU modules with different power ratings
(450 W and 800 W) is not supported.
– Mixed assembly of different 800 W hot-plug PSU modules ("Platinum" and
"Titanium" models) is not supported.
– PSU slots 1 or 2 always need to be equipped with a PSU module.
– Always install dummy modules into unused PSU slots to comply with
applicable EMC regulations and satisfy cooling requirements.

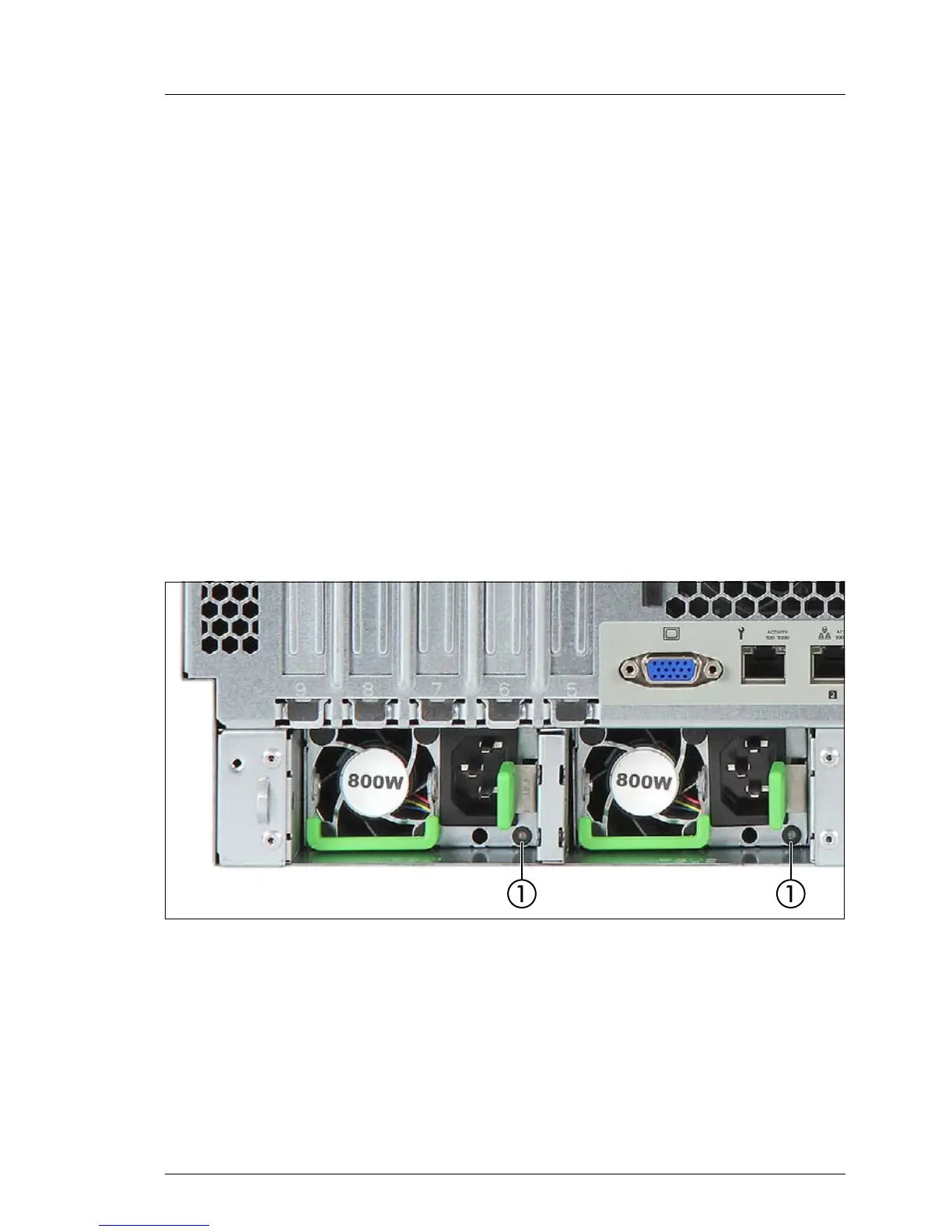

6.1.3 PSU indicator
Figure 75: PSU indicator
