Ê Run the front VGA cable through the mounting bracket on the front panel
frame as shown (1).
Ê Secure the front VGA connector with two hexagon bolts (2, see close-up).
13.3.1.5 Reassembling the front panel module
Ê "Mounting the front panel module cover" on page 609
13.3.1.6 Reinstalling the front panel module
Ê "Installing the front panel module" on page 611
13.3.1.7 Connecting front panel cables to the system board

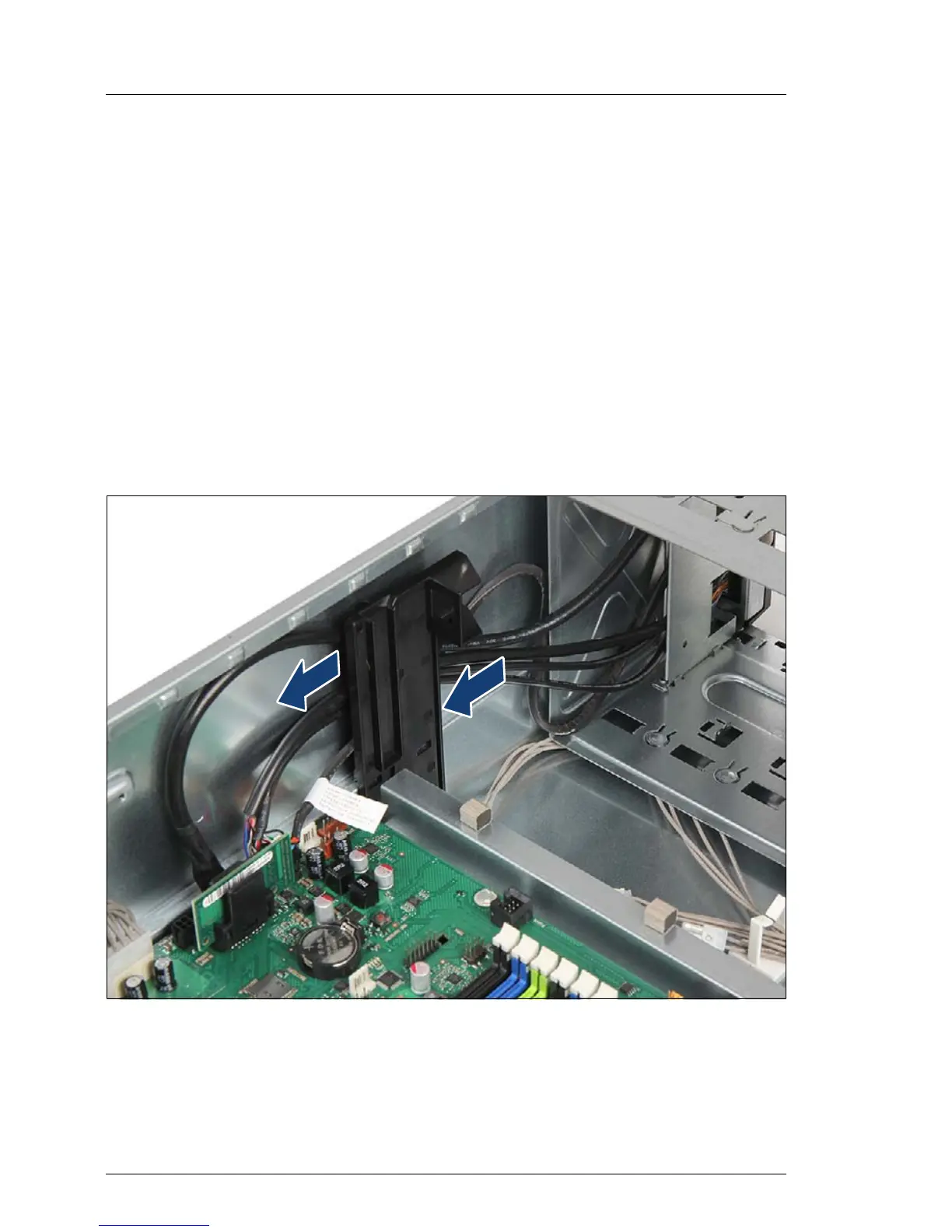

Figure 500: Securing front panel cables
Ê Run the front panel cables through the cable guide as shown.
